PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
SHENZHEN destroyer (1999)

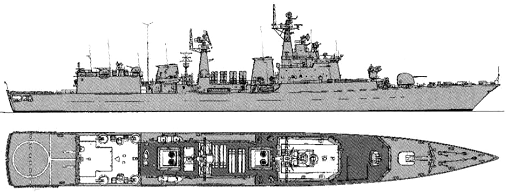

Shenzhen 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 深圳 [Shenzhen] (ex-Yantai) | 167 | Dalian SY | 5/1996 | 16.10.1997 | 4.1.1999 | in service (2019) |
|
Displacement standard, t |
6100 |
|
Displacement full, t |
6600 |
|
Length, m |
153.0 |
|
Breadth, m |
16.5 |
|
Draught, m |
6.00 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Zoria-Mashproekt DT-59 gas turbines / 2 MTU 12V1163 TB83 diesels |
|
Power, h. p. |
48600 / 8840 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(16) |
|
Armament |
4 x 4 Ying Ji-8A SSM (16 YJ-8A (C-802)), 1 x 8 HQ-7 SAM (16 HQ-7), 1 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 helicopters (Z-9C) |
|
Electronic equipment |
type 360S, type 362, type 381A, type 517H-1, type 344, 2x type 347G, type 345, 2x type 756 radars, 2x type 630 (GDG-775) E/O trackers, SJD-8/9 sonar suite, BM8610, SRW-210A ECM suites, 2x type 946, 2x type 947 decoy RL, ZKJ-6 CCS |
|
Complement |
250 |
Project history: Type 051B. An enlarged version of the type 052. The gas turbines in this ship were manufactured in Ukraine, but China signed a technology transfer contract with Zoria-Mashproekt in 2001 that is intended to result in production of the DA-80 (or DN-80) engine in China for future warships. ASW capabilities have been reduced from those of the type 052, as there is no VDS or towed array and the ASW rocket launchers have been omitted. The space between the SAM launcher and the bridge superstructure was occupied by a belowdecks reload magazine. A twin hangar and a French-designed SAMAHE harpoon-type recovery and dual deck traversing system were fitted for the helicopters.
Modernizations: 2003: - 1 x 2 - 100/56 type 79A; + 1 x 2 - 100/56 type 99
(2015-8/2016): - 4 x 4 Ying Ji-8A SSM, 1 x 8 HQ-7 SAM, 4 x 2 - 37/63, 2 Z-9C helicopters, type 381 radar; + 4 x 4 Ying Ji-83 SSM (16 YJ-83 (C-803)), 1 x 32 HQ-16 VLS (32 HQ-16), 2 x 11 - 30/80 type 1130, type 382, type 364, 3x type 345 radars (4 at all), 2x type 947 decoy RL, 1 Ka-28 helicopter
Naval service: No significant events.

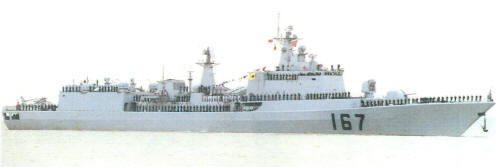

Shenzhen 2001
