PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
SHENYANG destroyers (2006-2007)

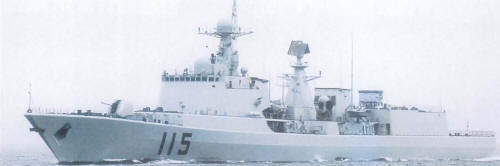

Shenyang 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 沈阳 [Shenyang] | 115 | Dalian SY | 2003 | 28.12.2004 | 8.10.2006 | in service (2019) | |
| 石家庄 [Shijiazhuang] | 116 | Dalian SY | 2004 | 26.7.2005 | 8.3.2007 | in service (2019) |
|
Displacement standard, t |
5900 |
|
Displacement full, t |
7100 |
|
Length, m |
155.0 |
|
Breadth, m |
17.0 |
|
Draught, m |
6.00 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Zoria-Mashproekt DT-59 gas turbines / 2 MTU 12V1163 TB83 diesels |
|
Power, h. p. |
48600 / 8800 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
2 x 4 Ying Ji-83 SSM (8 YJ-83 (C-803)), (4 x 8 + 2 x 8) S-300FM SAM (VLS, 48 48N6), 1 x 1 - 100/55 PJ-87, 2 x 7 - 30/77 type 730, 2 x 3 - 324 TT, helicopter deck (Z-9) |
|
Electronic equipment |
type 382, type 364, type 366, 30N6, type 344, 2x type 347G, 2x type 756 radars, 2x OFC-3 e/o directors, SJD-8/9 sonar, type 984/985, HZ-100 ECM suites, 2 type 726-4 18-tube, 2 10-tube decoy launchers, TAVITAC-2000 CCS |
|
Complement |
250 |
Project history: Type 051C. Hull design is nearly identical to type 51B. No signature reduction features have been included. Though not equipped with a hangar (former hangar of type 51B is used for S-300FM SAM system placing), a flight deck is fitted for landing and handling of medium-size helicopter up to Ka-28 (Z-18).
Modernizations: None.
Naval service: No significant events.
Shenyang 2008
