PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
LANZHOU destroyers (2004-2015)
Lanzhou 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 兰州 [Lanzhou] | 170 | Jiangnan, Shanghai | 6/2002 | 29.4.2003 | 18.7.2004 | in service (2019) | |
| 海口 [Haikou] | 171 | Jiangnan, Shanghai | 11/2002 | 29.10.2003 | 20.7.2005 | in service (2019) | |
| 长春 [Changchun] | 150 | Jiangnan, Changxing | 2009 | 28.11.2010 | 1.2.2013 | in service (2019) | |
| 郑州 [Zhengzhou] | 151 | Jiangnan, Changxing | 2010 | 20.7.2011 | 26.12.2013 | in service (2019) | |
| 济南 [Jinan] | 152 | Jiangnan, Changxing | 2010 | 16.10.2011 | 22.12.2014 | in service (2019) | |
| 西安 [Xian] | 153 | Jiangnan, Changxing | 2011 | 28.5.2012 | 9.2.2015 | in service (2019) |
|
Displacement standard, t |
6000 |
|
Displacement full, t |
7100 |
|
Length, m |
155.0 |
|
Breadth, m |
17.0 |
|
Draught, m |
6.00 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Zoria-Mashproekt DA-80 gas turbines / 2 Shaanxi 20V956 TB92 diesels |
|
Power, h. p. |
48600 / 9800 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(15) |
|
Armament |
2 x 4 Ying Ji-62 SSM (8 YJ-62 (C-602)), (6 x 6 + 2 x 6) HQ-9 SAM (VLS, 48 HQ-9), 1 x 1 - 100/55 PJ-87, 2 x 7 - 30/77 type 730, 2 x 3 - 324 TT, 1 helicopter (Ka-28) |
|
Electronic equipment |
type 346, type 517H-1, type 364, 4x MR90, type 344, 2x type 347G, 2x type 756 radars, 2x OFC-3 e/o directors, SJD-8/9 sonar, type 984/985, HZ-100 ECM suites, 4 type 726-4 decoy launchers, ZKJ-5 CCS |
|
Complement |
280 |
Project history: Type 052C. First Chinese surface combatant with a true air-defence capability. Based on the same hull as type 052B, this class is equipped with an AEGIS-style phased-array radar capability and a VLS air-defence system along with modern anti-ship missiles. Following some sources, type 726-4 decoy launchers can be used as ASW rocket launchers.
Modernizations: None.
Naval service: No significant events.

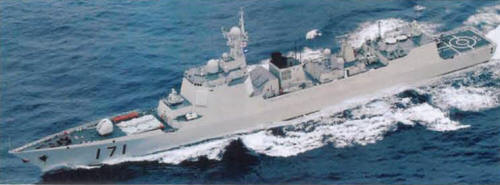

Haikou 2007
© Ivan Gogin, 2019
