PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
HARBIN destroyers (1994-1996)

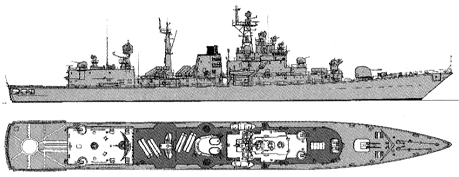

Harbin 2010

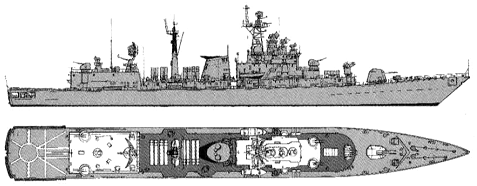

Qingdao 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 哈尔滨 [Harbin] | 112 | Jiangnan SY, Shanghai | 24.5.1990 | 28.8.1991 | 8.5.1994 | in service (2019) | |
| 青岛 [Qingdao] | 113 | Jiangnan SY, Shanghai | 2/1992 | 18.10.1993 | 28.5.1996 | in service (2019) |
|
Displacement standard, t |
4800 |
|
Displacement full, t |
5700 |
|
Length, m |
142.6 wl 148.0 oa |
|
Breadth, m |
15.6 wl 16.0 oa |
|
Draught, m |
5.00 hull 7.50 max |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric LM-2500 gas turbines / 2 MTU 12V1163 TB83 diesels |
|
Power, h. p. |
53600 / 8840 |
|
Max speed, kts |
31.5 / 20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(16) |
|
Armament |
112: 4 x 2 Ying Ji-1 SSM (8 YJ-1 (C-801)), 1 x 8 Crotale Modulaire SAM (24 Crotale Navale), 1 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 x 12 type 75 ASWRL, 2 helicopters (Z-9A) 113: 4 x 2 Ying Ji-1 SSM (8 YJ-1 (C-801)), 1 x 8 HQ-7 SAM (24 HQ-7), 1 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 x 12 type 75 ASWRL, 2 helicopters (Z-9A) |
|
Electronic equipment |
112: DRBV-15 (type 363), type 362, Sea Tiger, type 344, 2x type 347G, type 345, 2x type 756 radars, 2x type 630 (GDG-775) E/O trackers, DE-1164 sonar suite (DE-1160 hull + DE-1163 VDS), type 726, type 726-4A ECM suites, 2x type 726 decoy RL, ZKJ-3 CCS 113: type 360S, type 362, Sea Tiger, type 344, 2x type 347G, type 345, 2x type 756 radars, 2x type 630 (GDG-775) E/O trackers, DUBV-23, DUBV-43 (ESS-1) VDS sonars, type 726, type 726-4A ECM suites, 2x type 726 decoy RL, ZKJ-4 CCS |
|
Complement |
230 |
Project history: Enlarged version of type 051, Type 052. Originally planned to be fitted with US weapons and equipment, and LM-2500 gas turbines were exported to China for this class. Helicopter deck and hangar aft, and gun mounts are of a new enclosed type. Following the 1989 embargo, class was limited by only two units. Really they became first modern Chinese surface combatants. Have an unusual high freeboard. Are air-conditioned and have a full NBC warfare protection system. Hull has two sets of non-retractable fin stabilizers. A twin hangar and a French-designed SAMAHE harpoon-type recovery and dual deck traversing system are fitted for the helicopters.
Modernizations: 2002, Harbin: - 4 x 2 Ying Ji-1 SSM, 1 x 8 Crotale Modulaire SAM, 1 x 2 - 100/56 type 79A, Sea Tiger radar; + 4 x 4 Ying Ji-83 SSM (16 C-803), 1 x 8 HQ-7 SAM (24 HQ-7), 1 x 2 - 100/56 type 99, type 518 radar
2004, Qingdao: - 4 x 2 Ying Ji-1 SSM, 1 x 2 - 100/56 type 79A, Sea Tiger radar; + 4 x 4 Ying Ji-83 SSM (16 C-803), 1 x 2 - 100/56 type 99, type 518 radar
7/2011, Qingdao: - 4 x 2 - 37/63, 2 x 12 type 75 ASWRL, type 518, type 362 radars, DUBV-23, DUBV-43 sonars, type 726, type 726-4A ECM suites, 2x type 726 decoy RL, ZKJ-4 CCS; + 2 x 7 - 30/80 type 730, 2 x 6 type 87 ASWRL, type 517M, type 364, type 360 radars, SJD-8/9, ALPR sonars, type 826, type 981 ECM suites, 2x type 946, 2x SRBOC Mk 36 decoy RL, ZKJ-4B CCS
2012, Harbin: 2 General Electric LM-2500 gas turbines were replaced by 2 Zoria-Mashproekt AM-50 gas turbines (48600hp, 31kts); - 4 x 2 - 37/63, 2 x 12 type 75 ASWRL, type 518, type 362, DRBV-15 (type 363) radars, DE-1164 sonar suite, type 726, type 726-4A ECM suites, 2x type 726 decoy RL, ZKJ-3 CCS; + 2 x 7 - 30/80 type 730, 2 x 6 type 87 ASWRL, type 517M, type 364, type 363 radars, SJD-8/9, ALPR sonars, BM8610, type 984 ECM suites, 2x type 946, 2x SRBOC Mk 36 decoy RL, ZKJ-4A CCS
Naval service: No significant events.

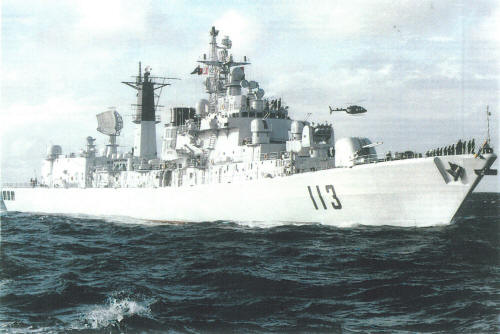

Qingdao 1998
