PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
GUANGZHOU destroyers (2004)
Guangzhou 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 广州 [Guangzhou] | 168 | Jiangnan, Shanghai | 2000 | 22.5.2002 | 20.5.2004 | in service (2019) | |
| 武汉 [Wuhan] | 169 | Jiangnan, Shanghai | 2001 | 9.9.2002 | 18.7.2004 | in service (2019) |
|
Displacement standard, t |
5800 |
|
Displacement full, t |
7000 |
|
Length, m |
155.0 |
|
Breadth, m |
17.0 |
|
Draught, m |
6.00 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Zoria-Mashproekt DN-80 gas turbines / 2 Shaanxi 12V1163 TB83 diesels |
|
Power, h. p. |
36300 / 9800 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(15) |
|
Armament |
4 x 4 Ying Ji-83 SSM (16 YJ-83 (C-803)), 2 x 1 HQ-16 SAM (48 HQ-16), 1 x 1 - 100/55 PJ-87, 2 x 7 - 30/77 type 730, 2 x 3 - 324 TT, 2 x 12 type 75 ASWRL, 1 helicopter (Ka-28) |
|
Electronic equipment |
type 382, type 366, type 364, 4x MR90, type 344, 2x type 347G, 2x type 756 radars, MGK-335EMS, H/SJG-206 sonars, 2x OFC-3 E/O directors, type 984/985, SR-210 ECM suites, 4 type 726-4 decoy launchers, ZKJ-5 CCS |
|
Complement |
280 |
Project history: Type 052B. Much improved version of the type 051B with some shaping of the superstructure to reduce radar signature, bulwarks at the bow and a single stack. Have the same SAM and main search radars as the Russian Sovremennyy class. Two pairs of active stabilizers.
Modernizations: None.
Naval service: No significant events.

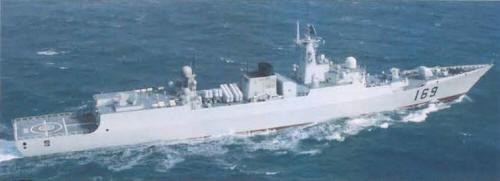

Wuhan 2007
