PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Chang Chun 1963
Chang Chun 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 鞍山 [An Shan] (ex-Рекордный [Rekordnyy], ex-Прыткий [Prytkiy]) | 101 | 198 Marti Yd, Nikolayev // 202 Yd, Vladivostok, USSR | 9.1936 // 8.1938 | 6.4.1939 | 1.1941 // 4.10.1954 | preserved 4.1992 | |
| 撫順 [Fu Shun] (ex-Резкий [Rezkiy]) | 102 | 198 Marti Yd, Nikolayev // 202 Yd, Vladivostok, USSR | 5.1936 // 7.1938 | 29.4.1940 | 8.1942 // 4.10.1954 | stricken 1989 | |
| 長春 [Chang Chun] (ex-Решительный [Reshitelnyy], ex-Поспешный [Pospeshnyy]) | 103 | 198 Marti Yd, Nikolayev // 199 Yd, Komsomolsk-on-Amur, USSR | 8.1936 // 8.1939 | 30.4.1940 | 8.1941 // 28.6.1955 | preserved 1990 | |
| 太原 [Tai Yuan] (ex-Ретивый [Retivyy]) | 104 | 198 Marti Yd, Nikolayev // 199 Yd, Komsomolsk-on-Amur, USSR | 8.1936 // 7.1937 | 27.10.1937 | 10.1941 // 28.6.1955 | hulk 9.1991 |
|
Displacement standard, t |
1900 |
|
Displacement full, t |
2200 |
|
Length, m |
112.8 |
|
Breadth, m |
10.2 |
|
Draught, m |
3.27 mean 4.10 max |
|
No of shafts |
2 |
|
Machinery |
2 GTZA-24 geared steam turbines sets, 3 triangle-shaped boilers |
|
Power, h. p. |
48000 |
|
Max speed, kts |
35 |
|
Fuel, t |
oil 535 |
| Endurance, nm(kts) | 2720(20) |
|
Armament |
4 x 1 - 130/51 B-13, 4 x 2 - 37/70 V-11, 2 x 3 - 533 TT, 2 DCT, 2 DCR (67), 60 mines |
| Electronic equipment | Giuys-1, Rif-1, Vympel-2 radars, Tamir-5N sonar |
|
Complement |
246 |
Project history: Former Soviet Project 7 destroyers.
Modernizations: 1971-1974, all: - 2 x 3 - 533 TT, Giuys-1, Rif-1, Vympel-2 radars, Tamir-5N sonar; + 2 x 2 HY-2 SSM (4 HY-2), type 352, type 517, Rangout, Decca 707 radars, Pegas-2M sonar
Naval service: No significant events.

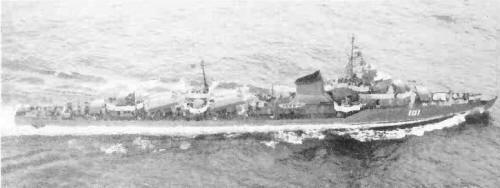

An Shan 1986
© Ivan Gogin, 2015-16
