PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
NANCHANG destroyers (2019-)

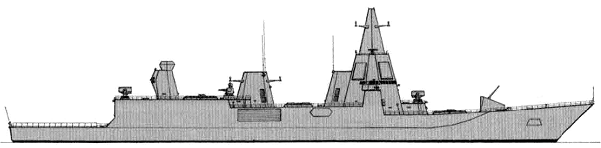

Nanchang 2019
| Name | No | Builder | Laid down | Launched | Comm | Fate |
| 南昌 [Nanchang] | 101 | Jiangnan, Changxing | 12/2014 | 28.6.2017 | 2019 | trials (2019) |
| 102 | Jiangnan, Changxing | 2015 | 28.4.2018 | 2020 | building (2019) | |
| 181 | Dalian SB | 2015 | 3.7.2018 | 2020 | building (2019) | |
| 182 | Dalian SB | 2015 | 3.7.2018 | 2020 | building (2019) | |
| v | Jiangnan, Changxing | 2016 | 2019 | 2021 | building (2019) | |
| vi | Dalian SB | 2016 | 2019 | 2021 | building (2019) | |
| vii | Jiangnan, Changxing | 2017 | 2020 | 2022 | building (2019) | |
| viii | Dalian SB | 2017 | 2020 | 2022 | building (2019) |
|
Displacement standard, t |
11000 |
|
Displacement full, t |
13500 |
|
Length, m |
183.0 |
|
Breadth, m |
22.0 |
|
Draught, m |
8.00 |
|
No of shafts |
2 |
|
Machinery |
COGAG: 4 QC-280ICR gas turbines |
|
Power, h. p. |
156000 |
|
Max speed, kts |
33 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
5000(18) |
|
Armament |
(1 x 64 + 1 x 48) CJ-10 CruM / YJ-18 SSM / YJ-100 SSM / YJ-62 SSM / HQ-9 SAM / HQ-16 SAM (112 CJ-10 / YJ-18 / YJ-100 / YJ-62 / HQ-9 / HQ-16), 2 x 10 HQ-10 SAM (20 HQ-10), 1 x 1 - 130/70 H/PJ-45A, 1 x 11 - 30/77 H/PJ-11, 2 x 3 - 324 TT, 2 helicopters (Z-20F) |
|
Electronic equipment |
type 346B, type 517B, type 366, type 364, type 344A, type 349, 2x type 756 radars, 2x OFC-3 e/o directors, SJD-9, ALPR sonars, type 984/985, HZ-100 ECM suites, 4x type 726-4 decoy launchers, ZKJ-5 CCS |
|
Complement |
Project history: Type 055 are main AA ships for Chinese carrier groups. They have two VLS grids, carrying many types of cruise, anti-ship, anti-aircraft ant anti-submarine missiles. Designed under USN 'Air-Sea battle' conception. Future replacement of the 130mm gun by rail-gun is planned.
Modernizations: None.
Naval service: No significant events.
