Pao Min 1890s
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 保民 [Pao Min] | Kiangnan DYd | late 1883 | 1885 | 10/1885 | hulk 1903 |
|
Displacement normal, t |
1480 |
|
Displacement full, t |
|
|
Length, m |
64.9 pp 69.4 oa |
|
Breadth, m |
11.0 |
|
Draught, m |
4.27 |
|
No of shafts |
2 |
|
Machinery |
2 HC, 6 cylindrical boilers |
|
Power, h. p. |
1900 |
|
Max speed, kts |
9 |
|
Fuel, t |
coal 360 |
|
Endurance, nm(kts) |
3360(10) |
|
Armament |
2 x 1 - 149/32 RK L/35 C/80, 6 x 1 - 120/32 RK L/35 C/80, 2 x 1 - 47/40 Hotchkiss |
|
Complement |
200 |
Project history: Schooner-rigged, steel-hulled cruiser built for the Nanyang fleet. She had a ram bow, two masts and one funnel. One 15cm gun was mounted in the bow and the other on the quarterdeck. The 12cm were mounted on the broadside.
Modernizations: None.
Naval service: No significant events.

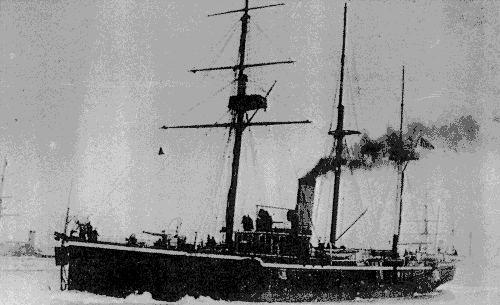

Pao Min 1885
© Ivan Gogin, 2014
