CHINESE / PEOPLE`S LIBERATION ARMY NAVY (CHINA / PEOPLE`S REPUBLIC OF CHINA)

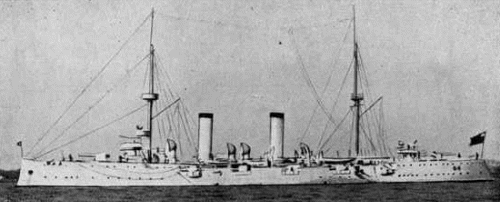

Hai Yung 1905
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 海容 [Hai Yung] | Vulkan, Bremen, Germany | 1896 | 15.9.1897 | 1898 | scuttled 11.8.1937 | ||
| 海筹 [Hai Chou] | Vulkan, Bremen, Germany | 1896 | 11.12.1897 | 1898 | scuttled 11.8.1937 | ||
| 海琛 [Hai Chen] | Vulkan, Bremen, Germany | 1896 | 12.2.1898 | 1898 | scuttled 11.8.1937 |
|
Displacement normal, t |
2680 |
|
Displacement full, t |
2950 |
|
Length, m |
100.0 |
|
Breadth, m |
12.4 |
|
Draught, m |
5.79 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 8 cylindrical boilers |
|
Power, h. p. |
7500 |
|
Max speed, kts |
19.5 |
|
Fuel, t |
coal 580 |
| Endurance, nm(kts) | 2100(10) |
| Armour, mm | deck: 32 with 70mm slopes, shields: 51, CT: 37 |
|
Armament |
3 x 1 - 149/37 SK L/40 C/97, 8 x 1 - 105/37 SK L/40 C/97, 6 x 1 - 47/37 SK L/40 C/91, 3 - 356 TT (1 bow, 2 beam) |
|
Complement |
244 |
Project history: Small 2nd
class protected cruisers, ordered simultaneously with two larger ships of Hai Chi
class after the Japanese-Chinese war. They were built in Germany by Vulkan, traditional
shipbuilder of Chinese
Navy. Hai Chen is sometimes transcribed as Hai Shen.
Hull had forecastle, poop and ram-shaped stem. 150mm/40 guns
were placed on characteristic for Chinese ships of the end of XIX century "triangular" scheme: two
aside on forecastle, the third on poop. 105mm and 47mm guns were
installed on an upper deck.
Ship protection: Machinery was protected by 32mm deck with 70mm slopes, turtleback-form deck at ship ends had 25mm thickness. 150mm guns were protected by 51mm shields.
Modernizations: 1930s, all: + 1 x 1 - 40/39 2pdr QF Mk II
Naval service: All three cruisers by 1937 were deduced from fleet list and 11.8.1937 were scuttled on river Yangtze at Jiangyin for fairway barrage.
Hai Yung 1929
