PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| [Haiguan 901] | 901 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 902] | 902 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 903] | 903 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 904] | 904 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 905] | 905 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 906] | 906 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 907] | 907 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s |
|
Displacement standard, t |
400 |
|
Displacement full, t |
435 |
|
Length, m |
58.0 |
|
Breadth, m |
7.60 |
|
Draught, m |
2.20 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V396 TB93 diesels |
|
Power, h. p. |
8720 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(12) |
|
Armament |
1 x 2 - 37/63 type 74, 2 x 2 - 14.5/93 |
|
Sensors |
radar |
|
Complement |
50 |
Project history: Flagships for Customs Force.
Modernizations: None.
Naval service: No significant events.

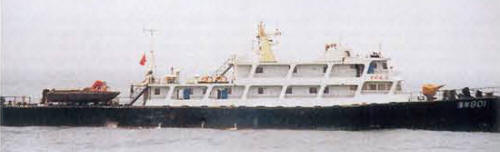

Haiguan 901 1993
© Ivan Gogin, 2016-19
