PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
|
Names |
[Haiguan 801 - 842] |
|
Builders |
Shanghai: Haiguan 801-842 |
|
Commissioned |
1992-1999: Haiguan 801-842 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
auxiliary late 2010s: Haiguan 801-842 |
|
Displacement standard, t |
|
|
Displacement full, t |
98 |
|
Length, m |
31.0 |
|
Breadth, m |
4.70 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
400(10) |
|
Armament |
2 x 2 - 14.5/93 |
|
Sensors |
2x Racal-Decca 1290 ARPA |
|
Complement |
26 |
Project history: Large patrol boats, served under Customs flag.
Modernizations: None.
Naval service: No significant events.

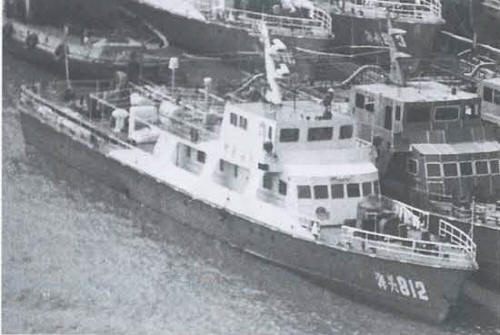

Haiguan 812 1993
© Ivan Gogin, 2016-19
