HAIJING 2901 Coast Guard patrol ships (2015-2016)

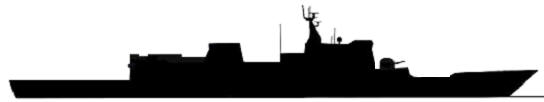

Haijing 2901 2015

Name No Yard No Builder Laid down Launched Comp Fate
海警 2901 [Haijing 2901] 2901   Jiangnan, Shanghai     2015 in service (2019)
海警 3901 [Haijing 3901] 3901   Jiangnan, Shanghai     2.1.2016 in service (2019)



Displacement standard, t



Displacement full, t

12000

Length, m

165.0

Breadth, m

21.8

Draught, m



No of shafts

1

Machinery

1 diesel

Power, h. p.



Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

1 x 1 - 76/59 PJ-26, 2 x 1 - 30/77 PJ-14, 1 helicopter

Sensors

1 surface search, 2 navigation radars

Complement



Project history: Largest Coast Guard patrol ships in the world.

Modernizations: None.

Naval service: No significant events.

�������� �� ������� 中国海警 2901

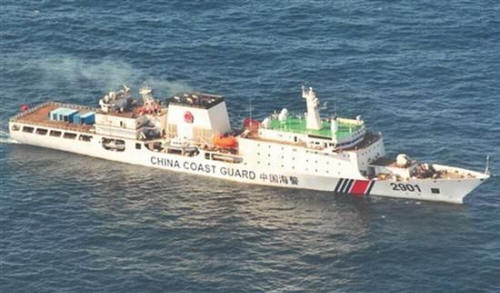

Haijing 2901 2016

Ivan Gogin, 2017-19
