PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| [Gongbian 62] | i | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| [Gongbian 178] | ii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| [Gongbian 233] | iii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| [Gongbian 44091] | iv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | |||
| v | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| vi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| vii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| viii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| ix | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| x | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xiii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xiv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xvi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xvii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xviii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xix | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xx | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxi | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxiii | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) | ||||
| xxiv | Wuxi SY or Huangpu SY | 1989-2010 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
165 |
|
Length, m |
28.0 |
|
Breadth, m |
4.20 |
|
Draught, m |
1.60 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
400(10) |
|
Armament |
2 x 2 - 14.5/93 |
|
Sensors |
radar |
|
Complement |
26 |
Project history: Modified Project 206 with greater freeboard.
Modernizations: None.
Naval service: No significant events.

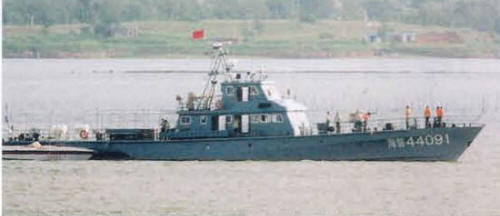

Gongbian 44091 1995
