PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Yangjiang 2010
Lianjiang 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 阳江 [Yangjiang] | 770 | Huangpu SY, Shanghai | 1.1991 | 5.1991 | in service (2019) | ||
| 顺德 [Shunde] | 771 | Huangpu SY, Shanghai | 7.1994 | 2.1995 | in service (2019) | ||
| 南海 [Nanhai] | 772 | Jiangnan SY, Shanghai | 2.1995 | 4.1995 | in service (2019) | ||
| 番禹 [Panyu] | 773 | Huangpu SY, Shanghai | 5.1995 | 7.1995 | in service (2019) | ||
| 廉江 [Lianjiang] | 774 | Huangpu SY, Shanghai | 9.1998 | 2.1999 | in service (2019) | ||
| 新会 [Xinhui] | 775 | Jiangnan SY, Shanghai | 4.1999 | 11.1999 | in service (2019) |
|
Displacement standard, t |
520 |
|
Displacement full, t |
542 |
|
Length, m |
65.4 |
|
Breadth, m |
8.40 |
|
Draught, m |
2.38 mean |
|
No of shafts |
3 |
|
Machinery |
3 SEMT-Pielstick 12PA6V 280MPC diesels |
|
Power, h. p. |
17280 |
|
Max speed, kts |
33.6 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(18) |
|
Armament |
770-773, 775: 2 x 3 Ying Ji-8A SSM (6 C-801), 1 x 2 - 37/63 type 76A, 2 x 2 - 30/65 type 69 774: 2 x 3 Ying Ji-8A SSM (6 C-801), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630 |
|
Sensors |
770-773, 775: type 348, type 765, type 347G or (type 344, type 363) radars, JM-83 E/O director, type 900-series ECM suite, 2x type 945G decoy RL, type 88C CCS 774: type 348, type 765, Vympel MR-123-02 radars, JM-83 E/O director, type 900-series ECM suite, 2x type 945G decoy RL, type 88C CCS |
|
Complement |
47 |
Project history: Variant of type 037IG with stronger armament and more powerful diesels. One (Lianjiang) was built as technology demonstrator with Russian gun armament.
Modernizations: None.
Naval service: Lianjiang collided twice during her service: at first time in 2001 she was nearly sunk after a collision with fast ferry on Hong Kong - Guangzhou route; at second time she sank with 13 men lost in 26.6.2006 in collision with Chinese cargo vessel, she was salvaged and recommissioned in 2008.

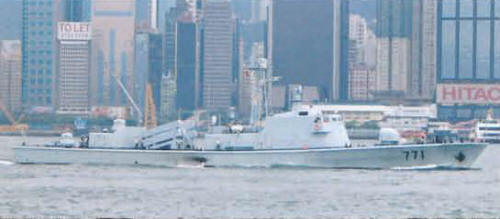

Shunde 2007
