PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Jiusha 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 莱阳 [Laiyang] | 651 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1991 | in service (2019) | |||
| 莱西 [Laixi] | 652 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1997 | in service (2019) | |||
| 曲阜 [Qufu] | 653 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1997 | in service (2019) | |||
| 成武 [Chengwu] | 654 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1998 | in service (2019) | |||
| 乳山 [Rushan] | 655 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1998 | in service (2019) | |||
| 寿光 [Shouguang] | 656 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1998 | in service (2019) | |||
| 金沙 [Jiusha] | 751 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 29.5.1990 | 30.12.1990 | 30.8.1991 | in service (2019) | |
| 三都 [Yuqing] | 752 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1992 | stricken 2014 | |||
| 东安 [Dongan] | 753 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1995 | in service (2019) | |||
| 余庆 [Linwu] | 754 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1996 | in service (2019) | |||
| 潮阳 [Chaoyang] | 755 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1993-97 | in service (2019) | |||
| 福鼎 [Chenghai] | 756 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1993-97 | in service (2019) | |||
| 古田 [Gutian] | 757 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1993 | in service (2019) | |||
| 永春 [Yongshun] | 758 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1995-97 | in service (2019) | |||
| 福清 [Fuqing] | 759 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1994 | in service (2019) | |||
| 长乐 [Changle] | 760 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1995-97 | in service (2019) | |||
| 龙岩 [Longyan] | 764 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1996 | in service (2019) | |||
| 上杭 [Hangtingdao] | 765 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1996 | in service (2019) | |||
| 福鼎 [Fuding] | 766 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1996 | in service (2019) | |||
| 福安 [Fuan] | 767 | Qiuxin SY, Shanghai // Huangpu SY, Shanghai | 1995-97 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
478 |
|
Length, m |
62.0 |
|
Breadth, m |
7.20 |
|
Draught, m |
2.24 mean |
|
No of shafts |
4 |
|
Machinery |
4 PR 230ZC diesels |
|
Power, h. p. |
13200 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(14) |
|
Armament |
2 x 2 Ying Ji-8A SSM (4 C-801), 2 x 2 - 37/63 type 76A, 2 x 2 - 14.5/93 |
|
Sensors |
type 723, type 352C, type 341 radars, ECM suite |
|
Complement |
60 |
Project history: FAC(M) variant of Type 037 patrol boat.
Modernizations: None.
Naval service: No significant events.

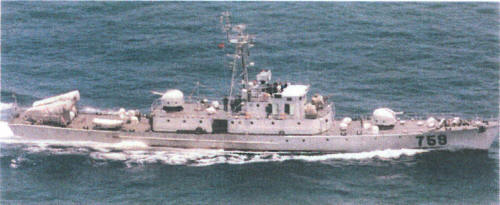

No 759 2002
