PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
Changli 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 海阳 [Haiyang], 2008- 惠民 [Huimin] | 611, 2008- 619 | Qiuxin SY, Shanghai | 1996 | in service (2019) | |||
| 章丘 [Zhangqiu] | 612 | Qiuxin SY, Shanghai | 1997 | in service (2019) | |||
| 任丘 [Renqiu] | 613 | Qiuxin SY, Shanghai | 1999 | in service (2019) | |||
| 昌黎 [Changli] | 614 | Qiuxin SY, Shanghai | 1997-99 | in service (2019) | |||
| 永济 [Yongji] | 631 | Qiuxin SY, Shanghai | 1996-97 | stricken 2016 | |||
| 长海 [Changhai] | 632 | Qiuxin SY, Shanghai | 1997 | stricken 2016 | |||
| 绥中 [Suizhong] | 633 | Qiuxin SY, Shanghai | 1997 | in service (2019) | |||
| 宝丰 [Baofeng] | 634 | Qiuxin SY, Shanghai | 1999 | in service (2019) | |||
| 伊川 [Yichuan] | 635 | Qiuxin SY, Shanghai | 1999 | stricken 2016 | |||
| 即墨 [Jimo] | 710 | Qiuxin SY, Shanghai | 1993 | stricken 2014, to Tanzania | |||
| 胶南 [Jiaonan] | 711 | Qiuxin SY, Shanghai | 1993 | stricken 2014, to Tanzania | |||
| 锦江 [Jinjiang] | 712 | Qiuxin SY, Shanghai | 1995 | in service (2019) | |||
| 龙海 [Longhai] | 713 | Qiuxin SY, Shanghai | 1996 | in service (2019) | |||
| 黄岩 [Huangyan] | 743 | Qiuxin SY, Shanghai | 1993-95 | in service (2019) | |||
| 云和 [Yunhe] | 744 | Qiuxin SY, Shanghai | 1993-95 | in service (2019) | |||
| 富阳 [Fuyang] | 761 | Qiuxin SY, Shanghai | 1995 | in service (2019) | |||
| 萧山 [Xiaoshan] | 762 | Qiuxin SY, Shanghai | 1995 | in service (2019) | |||
| 上虞 [Shangyu] | 763 | Qiuxin SY, Shanghai | 1995 | in service (2019) | |||
| 万宁 [Wanning] | 786 | Qiuxin SY, Shanghai | 1994 | stricken 6.2016, to Namibia (Daures) | |||
| 乐东 [Ledong] | 787 | Qiuxin SY, Shanghai | 1994 | stricken 6.2016, to Namibia (Brukkaros) | |||
| 定安 [Dingan] | 788 | Qiuxin SY, Shanghai | 1994 | stricken 6.2016 | |||
| 临高 [Lingao] | 789 | Qiuxin SY, Shanghai | 1993-95 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
478 |
|
Length, m |
62.8 |
|
Breadth, m |
7.20 |
|
Draught, m |
2.40 |
|
No of shafts |
4 |
|
Machinery |
4 PR 230ZC diesels |
|
Power, h. p. |
8000 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1300(15) |
|
Armament |
2 x 2 - 37/63 type 76A, 2 x 2 - 14.5/93, 2 x 6 type 87 ASWRL |
|
Sensors |
type 723 radar, Tamir-11 sonar |
|
Complement |
71 |
Project history: Replacement for Type 037I with new main guns and ASW rocket launchers.
Modernizations: None.
Naval service: No significant events.

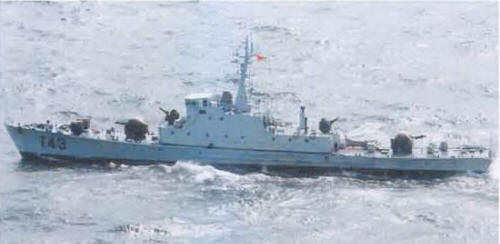

Huangyan 2008
