PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

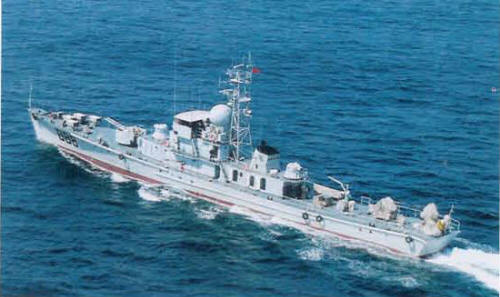

Yongjia 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 南匯 [Nanhui] | 688 | Huangpu SY, Guangzhou | 1987 | stricken 2013 | |||
| 永嘉 [Yongjia] | 693 | Huangpu SY, Guangzhou | 1987 | in service (2019) | |||
| 阮元 [Ru'an] | 694 | Huangpu SY, Guangzhou | 1987 | stricken 1995 | |||
| 安吉 [Anji] | 697 | Huangpu SY, Guangzhou | 1987 | stricken 2017 |
|
Displacement standard, t |
|
|
Displacement full, t |
450 |
|
Length, m |
62.0 |
|
Breadth, m |
7.20 |
|
Draught, m |
2.24 hull |
|
No of shafts |
4 |
|
Machinery |
4 diesels |
|
Power, h. p. |
8800 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
750(18) |
|
Armament |
2 x 2 - 57/62 type 66, 2 x 2 - 30/65 type 69, 4 x 5 type 87 ASWRL, 2 DCT, 2 DCR, mines |
|
Sensors |
type 351, type 342 radars, Tamir-11 sonar |
|
Complement |
70 |
Project history: Lengthened Type 037 with new guns.
Modernizations: 1989-1990, all: - 1 x 2 - 57/62; + SS-12 VDS sonar
2000s, Nanhui: - 1 x 2 - 30/65; + 2 x 2 - 14.5/89
Naval service: No significant events.
Nanhui 2008
