PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)
1109 1980
|
Names |
~90 boats: No1101...- No3100...- |
|
Builders |
Wuhu SY Chuangxin SY |
|
Commissioned |
1965 - 1976: ~90 boats |
|
Losses |
none |
|
Transfers |
Albania, 1976-1977: 4 boats Pakistan, 1981-1982: 4 boats Bangladesh, 1983: 4 boats Egypt, 1984: 6 boats Bangladesh, 1992: 1 boat |
|
Discarding |
1990s: ~32 boats early 2000s: ~40 boats |
|
Displacement standard, t |
68 |
|
Displacement full, t |
79 |
|
Length, m |
27.0 |
|
Breadth, m |
6.50 |
|
Draught, m |
1.80 |
|
No of shafts |
4 |
|
Machinery |
4 M50F-4 diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
37 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
500(24) |
|
Armament |
2 x 1 Hai Ying-2 SSM (2 HY-2), 1 x 2 - 25/80 type 61 |
|
Sensors |
type 352 radar |
|
Complement |
17 |
Project history: Chinese-built development of the Soviet Project 183R with a steel rather than a wooden hull. The SSM launchers were farther inboard and they had a pole mast. Otherwise they were very similar apart from a slightly modified hull form.
Modernizations: None.
Naval service: No significant events.

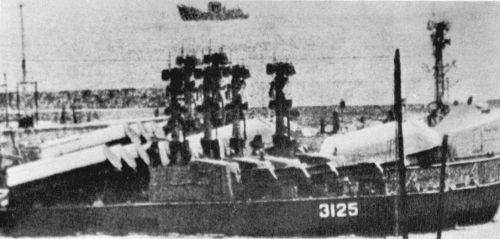

3125 1979
