fighting ships of the world

PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

COASTAL FORCES

No3100 (project 021) fast attack craft (missile) (1965-1975)

project 021 1975

project 021 with 30mm guns 1985

numbered in series 3100-..., 6100-..., 7100-...

Name No Yard No Builder Laid down Launched Comp Fate
i     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
ii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
iii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
iv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
v     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
vi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
vii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
viii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
ix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
x     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xiii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xiv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xx     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxiii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxiv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxx     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxiii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxiv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xxxix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xl     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xli     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xlii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xliii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xliv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xlv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xlvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xlvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xlviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
xlix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
l     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
li     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
liii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
liv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lx     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxiii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxiv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxx     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxiii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxiv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxvi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxvii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxviii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxix     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxx     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxxi     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxxii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxxiii     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxxiv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxxv     Hudong SY, Shanghai     1965-75 stricken 1990s-2010
lxxxvi     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
lxxxvii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
lxxxviii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
lxxxix     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xc     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xci     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xcii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xciii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xciv     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xcv     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xcvi     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xcvii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xcviii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
xcix     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
c     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
ci     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
ciii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
civ     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cv     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cvi     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cvii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cviii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cix     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cx     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxi     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxiii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxiv     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxv     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxvi     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxvii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxviii     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxix     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxx     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010
cxxi     Xijiang SY, Wuzhou     1965-75 stricken 1990s-2010



121 craft were in service in 1984

~80 craft were in service in 1995

30+ craft were in service in 2003

14 craft were in service in 2005

11 craft were in service in 2009

8 craft were in service in 2013 (2304, 3114, 6107, 6119, 6120, 6122-6124)

Transfers:

North Korea, 1980s: 4 craft

Pakistan, 1984: 4 craft

Bangladesh, 1988: 4 craft, 1992: 1 craft



Displacement standard, t

167

Displacement full, t

205

Length, m

38.8

Breadth, m

7.60

Draught, m

1.70

No of shafts

3

Machinery

3 42-160 diesels

3110: 3 K48E150ZC diesels

Power, h. p.

12000

3110: 15300

Max speed, kts

35

3110: 44.5

Fuel, t

diesel oil

Endurance, nm(kts)

800(30)

Armament

4 x 1 Hai Ying-2 SSM (4 HY-2), 2 x 2 - 25/80 type 81

Sensors

type 352 radar

Complement

28

Project history: Chinese version of the Soviet Project 205. 3110 was built in 1977 for tests of new diesels.

Modernizations: 1976-1980, 18 craft: - 2 x 2 - 25/80; + 2 x 2 - 30/65 type 69, type 341 radar

Naval service: No significant events.

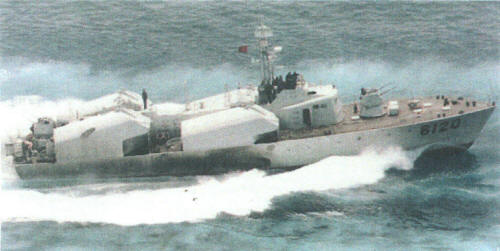

6120 2002
