| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pilcomayo | Money Wigram, Blackwood, UK | 1872 | 1874 | 1875 // 11.1879 | TS 1890, hulk 1909 |
|
Displacement normal, t |
800 |
|
Displacement full, t |
|
|
Length, m |
55.4 pp |
|
Breadth, m |
7.47 |
|
Draught, m |
3.51 max |
|
No of shafts |
1 |
|
Machinery |
1 HC |
|
Power, h. p. |
1080 |
|
Max speed, kts |
11 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 147/21 Armstrong 70pdr BLR, 2 x 1 - 121/22 Armstrong 20pdr BLR |
|
Complement |
130 |
Project history: Barque-rigged boat with one funnel. She was completed for Peruvian navy in 1875 and captured by Chilean ironclad Blanco Encalada 18.11.1879 off Moquegua.
Modernizations: None.
Naval service: By 1890 Pilcomayo was a boys' TS.

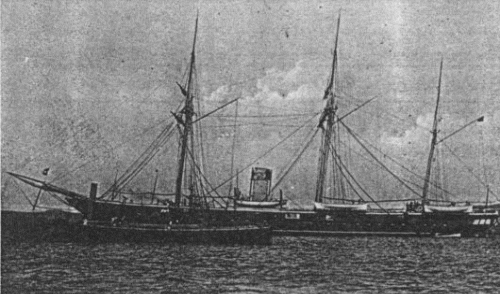

Pilcomayo
© Ivan Gogin, 2015
