Valdivia 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Valdivia (ex-San Bernandino) | 93 | National Steel, San Diego, USA | 12.7.1969 | 28.3.1970 | 27.3.1971 // 30.9.1995 | stricken 1.2011 |
|
Displacement standard, t |
4975 |
|
Displacement full, t |
8576 |
|
Length, m |
159.2 oa over hull, 171.3 oa over derrick arms |
|
Breadth, m |
21.2 |
|
Draught, m |
5.30 aft 1.80 fwd |
|
No of shafts |
2 |
|
Machinery |
6 Alco 16-251 diesels |
|
Power, h. p. |
16500 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil 1750 |
| Endurance, nm(kts) | 14250(14) |
|
Armament |
1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90 |
| Military load | 29 tanks or 2000 t of cargo, 385 troops, 3 LCVP, 1 LCP |
|
Electronic equipment |
SPS-64(v)9, SPS-10F radars |
|
Complement |
257 |
Project history: Former USN Newport class LST.
Modernizations: None.
Naval service: No significant events.

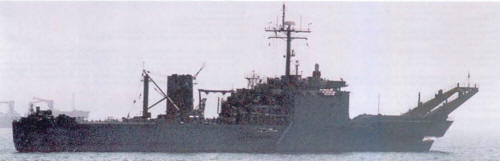

Valdivia 1999
