| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Elicura | 95, 1990s- R90 | ASMAR, Talcahuano | 7.1966 | 21.4.1967 | 12.1968 | stricken 2015 | |
| Orompello | 94, 1990s- R94 | Dade DD, Miami, USA | 1963 | 9.1964 | stricken 2014 |
|
Displacement standard, t |
290 |
|
Displacement full, t |
750 |
|
Length, m |
46.0 pp 49.2 oa |
|
Breadth, m |
10.4 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 Cummins VT-17-700M diesels |
|
Power, h. p. |
1006 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 71 |
| Endurance, nm(kts) |
2900(10.5) |
|
Armament |
2 x 1 - 20/70 Mk 10 |
| Electronic equipment | Pathfinder 1500B radar |
| Military load |
180 troops, tanks or 380 t of cargo |
| Complement | 19 |
Project history: LCU/LSMs, have a bow ramp and 10t cargo boom. Can carry 40t tanks.
Modernizations: None.
Naval service: No significant events.

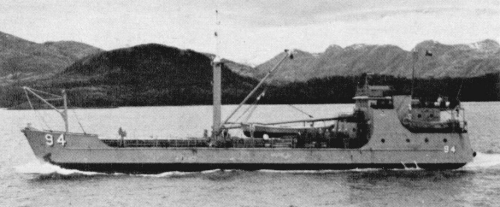

Orompello 1971

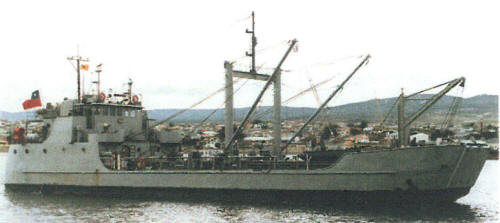

Elicura 2001
