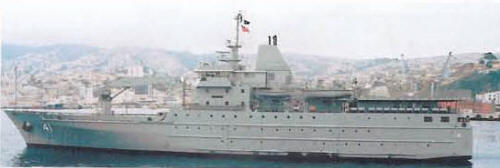

Aquiles 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Aquiles | 41 | ASMAR, Talcahuano | 27.5.1986 | 4.12.1987 | 15.7.1988 | in service (2019) |
|
Displacement standard, t |
2767 |
|
Displacement full, t |
4550 |
|
Length, m |
97.0 pp 103.0 oa |
|
Breadth, m |
17.0 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
2 MAK 8M453B diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 460 |
| Endurance, nm(kts) | 17050(16) |
|
Armament |
2 x 1 - 20/70 Mk 10, helicopter deck |
| Military load | 250 passengers, 1550 t cargo |
|
Electronic equipment |
2x radars |
|
Complement |
80 |
Project history: 1800 dwt. Has two cargo holds totaling 2,900m³ and one 20t electric crane. Can carry up to 890t ballast water and 470t potable water. The helicopter deck is large enough to accept a Super Puma. Has double-chine hullform with bulbous bow.
Modernizations: None.
Naval service: No significant events.

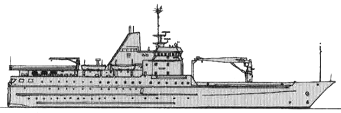

Aquiles 2001
