CHILEAN NAVY (CHILE)

ESCORTS

PILOTO SIBBALD patrol vessel (1916/1920)

Name No Yard No Builder Laid down Launched Comp Fate
Piloto Sibbald (ex-Stoic)     Bow McLachlan, Paisley, UK   1916 1916 // 1920 tug 1945



Displacement normal, t

1100

Displacement full, t



Length, m

43.1

Breadth, m

8.69

Draught, m

3.35

No of shafts

2

Machinery

2 VTE, 2 cylindrical boilers

Power, h. p.

1200

Max speed, kts

11.5

Fuel, t

coal 145

Endurance, nm(kts)



Armament

1 x 1 - 37/20 Hotchkiss

Complement

18

Project history: Patrol vessel intended for coast guard, search and rescue service. Possessed fire fighting and salvage equipment. Ship was completed in 1916 and requisitioned by Royal Navy as Stoic. After the war she was re-purchased by Chile.

Modernizations: None.

Naval service: In 1945 Piloto Sibbald was converted to tug but classified as coast guard vessel and served till 1960s.

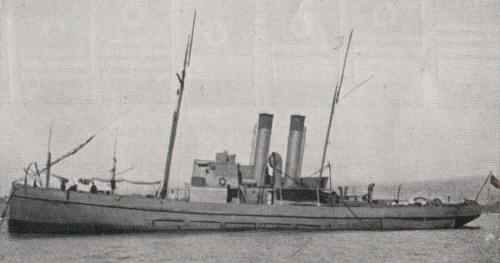

Piloto Sibbald 1931
