Papudo 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Abtao | 36 | ASMAR, Talcahuano | --- | cancelled 1970 | |||
| Papudo | 37 | ASMAR, Talcahuano | 27.11.1971 | deleted 1993 | |||
| Pisagua | 38 | ASMAR, Talcahuano | --- | cancelled 1970 |
|
Displacement standard, t |
308 |
|
Displacement full, t |
412 |
|
Length, m |
52.9 |
|
Breadth, m |
7.00 |
|
Draught, m |
3.10 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 16-567 diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 60 |
|
Endurance, nm(kts) |
5000(10) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24, 1 x 24 Hedgehog Mk 15 ASWRL, 4 Mk 6 DCT, 1 DCR |
|
Electronic equipment |
radar, SQS-17 sonar |
|
Complement |
69 |
Project history: US PC1638 class craft, design based on wartime PC461.
Modernizations: late 1980s: - 1 x 24 Hedgehog Mk 15 ASWRL, 4 DCT, 1 DCR, SQS-17 sonar
Naval service: No significant events.

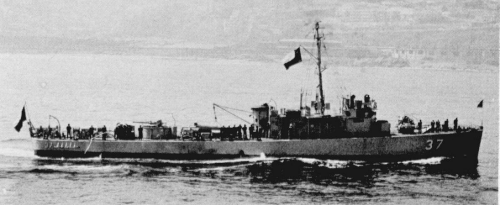

Papudo 1979
