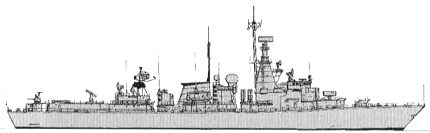

Almirante Latorre 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Capitán Prat (ex-Witte de With) | 11 | 363 | KM De Schelde, Vlissingen, Netherlands | 15.12.1981 | 28.8.1984 | 17.9.1986 // 17.7.2006 | in service (2019) |
| Almirante Latorre (ex-Jacob van Heemskerck) | 14 | 362 | KM De Schelde, Vlissingen, Netherlands | 21.1.1981 | 5.11.1983 | 15.1.1986 // 16.12.2005 | in service (2019) |
|
Displacement standard, t |
3000 |
|
Displacement full, t |
3750 |
|
Length, m |
121.8 pp 130.5 oa |
|
Breadth, m |
14.6 |
|
Draught, m |
4.23 hull 6.00 propellers 6.20 sonar |
|
No of shafts |
2 |
|
Machinery |
COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines |
|
Power, h. p. |
51600 / 9800 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4700(16) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 Standard SM-1MR SAM (40 RIM-66), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 7 - 30/77 Goalkeeper, 2 x 1 - 20/70 Mk 10, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5) |
|
Electronic equipment |
Decca 1226, Scout, ZW-06, SMART-S, LW-08, STIR-1.8, 2x STIR-2.4, Goalkeeper radars, SQS-509 (PHS-36) sonar, Sphinx, Ramses ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO II CCS |
|
Complement |
197 + 20 flag staff |
Project history: Former Dutch L (Jacob van Heemskerck) class frigates.
Modernizations: 2010, both: - SEWACO II CCS; + SP 21K CCS
Naval service: No significant events.

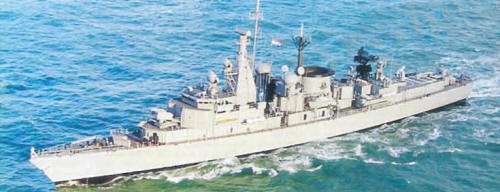

Almirante Latorre 2005
Many thanks to Wolfgang Stöhr for additional information on this page.
