Almirante Cochrane 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Almirante Cochrane (ex-Norfolk) | 05 | Marconi Marine (YSL), Scotstoun, UK | 14.12.1985 | 10.7.1987 | 1.6.1990 // 22.11.2006 | in service (2019) | |
| Almirante Condell (ex-Marlborough) | 06 | Swan Hunter, Wallsend, UK | 22.10.1987 | 21.1.1989 | 14.6.1991 // 28.5.2008 | in service (2019) | |
| Almirante Lynch (ex-Grafton) | 07 | Marconi Marine (YSL), Scotstoun, UK | 13.5.1993 | 5.11.1994 | 29.5.1997 // 28.3.2007 | in service (2019) |
|
Displacement standard, t |
3500 |
|
Displacement full, t |
4200 |
|
Length, m |
123.0 pp 133.0 oa |
|
Breadth, m |
15.0 wl 16.1 deck |
|
Draught, m |
4.30 hull 5.50 max 7.30 sonar |
|
No of shafts |
2 |
|
Machinery |
05, 06: CODLAG: 2 Rolls-Royce Spey SM1A gas turbines + 4 Paxman Valenta 12RPA 200CZ diesel-generators, 2 electric motors 07: CODLAG: 2 Rolls-Royce Spey SM1C gas turbines + 4 Paxman Valenta 12RPA 200CZ diesel-generators, 2 electric motors |
|
Power, h. p. |
05, 06: 37540 + 4000 = 41540 07: 52300 + 4000 = 56300 |
|
Max speed, kts |
05, 06: 28 07: 30 |
|
Fuel, t |
gas turbine oil + diesel oil 800 |
|
Endurance, nm(kts) |
8000(15) |
|
Armament |
05, 06: 2 x 4 Harpoon SSM (8 RGM-84C/GWS.60), 1 x 32 Sea Wolf GWS.26 Mod.1 SAM (VLS, 32 Sea Wolf GWS26), 1 x 1 - 114/55 Mk 8 Mod.1, 2 x 1 - 30/75 DES-30B, 2 x 1 - 20/90 GAM-B01, 4 - 324 DMTS90 (Stingray), 1 helicopter (Cougar) 07: 2 x 4 Harpoon SSM (8 RGM-84C/GWS.60), 1 x 32 Sea Wolf GWS.26 Mod.1 SAM (VLS, 32 Sea Wolf GWS26), 1 x 1 - 114/55 Mk 8, 2 x 1 - 30/75 DES-30B, 2 x 1 - 20/90 GAM-B01, 4 - 324 DMTS90 (Stingray), 1 helicopter (Cougar) |
|
Electronic equipment |
type 996(2), 2x type 911, type 1007, type 1008 radars, type 2050NE, type 2087 sonars, GSA.8/GPEOD Sea Archer E/O director, UAF(1) ECM suite, 4x DLB, 2x SKWS decoy RL, type 2070 torpedo decoy, DNA(1) SSCS CCS |
|
Complement |
185 |
Project history: Former British Type 23 (Norfolk class) frigates.
Modernizations: 2010, all: - DNA(1) SSCS CCS; + SP 21K CCS
Naval service: No significant events.

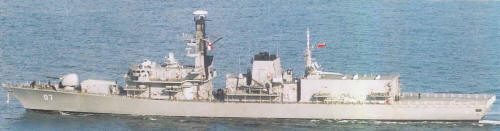

Almirante Lynch 2007
