Chipana 1950
Casma 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Casma (ex-Stellarton) | C, 1960- 37 | Morton, Quebec City, Canada | 11.1943 | 27.4.1944 | 9.1944 // 1946 | sold 7.1969 | |
| Chipana (ex-Strathroy) | C2, 1960- 38 | Midland, Canada | 11.1943 | 15.6.1944 | 11.1944 // 1946 | sold 7.1969 | |
| Papudo (ex-Thorlock) | P, 1960- 39 | Midland, Canada | 9.1943 | 15.5.1944 | 11.1944 // 1946 | sold 5.1967 |
|
Displacement standard, t |
1000 |
|
Displacement full, t |
1370 |
|
Length, m |
57.9 pp 63.5 oa |
|
Breadth, m |
10.1 |
|
Draught, m |
4.42 deep load |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
2750 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
oil 337 |
|
Endurance, nm(kts) |
7400(10) |
|
Armament |
1 x 1 - 102/40 CP Mk XXIII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 1 x 24 - 178 Hedgehog ASWRL, 4 DCT, 2 DCR (100) |
|
Electronic equipment |
type 271Q or type 273 or type 291 radar, type 144 sonar |
|
Complement |
109 |
Project history: Canadian-built modified Flower class corvettes purchased from the RCN.
Modernizations: None.
Naval service: Chipana was employed as survey ship.

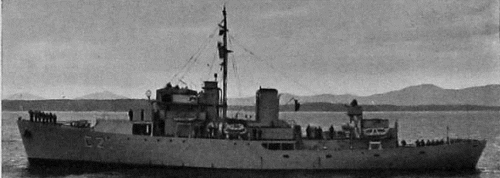

Chipana 1946
