Almirante Riveros 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Almirante Blanco Encalada (ex-Abraham van der Hulst) | 15 | 368 | KM De Schelde, Vlissingen, Netherlands | 8.2.1989 | 7.9.1991 | 15.12.1993 // 16.12.2005 | in service (2019) |
| Almirante Riveros (ex-Tjerk Hiddes) | 18 | 366 | KM De Schelde, Vlissingen, Netherlands | 28.10.1986 | 9.12.1989 | 3.12.1992 // 18.4.2007 | in service (2019) |
|
Displacement standard, t |
2800 |
|
Displacement full, t |
3320 |
|
Length, m |
114.4 pp 122.3 oa |
|
Breadth, m |
14.4 |
|
Draught, m |
4.30 hull 6.05 propellers |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Rolls-Royce Spey RM-1C gas turbines / 2 Werkspoor-Wärtsilä 12SW 280V12 diesels |
|
Power, h. p. |
48900 / 9800 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
5000(18) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 1 x 16 Sea Sparrow SAM (VLS, 16 RIM-7M), 1 x 1 - 76/62 OTO Melara Compact, 2 x 1 - 12.7/90, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5), 1 helicopter (Cougar) |
|
Electronic equipment |
Decca 1690/9, Scout, SMART-S, LW-08, 2x STIR-1.8 radars, PHS-36 sonar, AR700, 2x APECS-II ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO VIIB CCS |
|
Complement |
145 |
Project history: Former Dutch M (Karel Doorman) class frigates.
Modernizations: 2010, both: - SEWACO VIIB CCS; + SP 21K CCS
Naval service: No significant events.

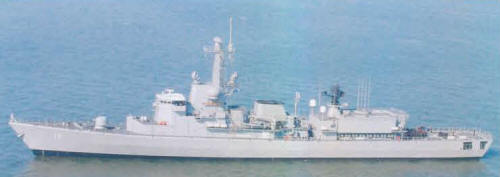

Almirante Riveros 2007
Many thanks to Wolfgang Stöhr for additional information on this page.
