Sargento Aldea 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sargento Aldea (ex-Arikara, ex-ATF98) | 63 | Charleston SB, USA | 28.11.1942 | 22.4.1943 | 15.11.1943 // 1.7.1971 | deleted 1992 |
|
Displacement standard, t |
1235 |
|
Displacement full, t |
1675 |
|
Length, m |
59.4 wl 62.5 oa |
|
Breadth, m |
11.7 |
|
Draught, m |
4.67 |
|
No of shafts |
1 |
|
Machinery |
4 Busch-Sulzer BS539 diesel-generators, 1 electric motor |
|
Power, h. p. |
3000 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 363 |
|
Endurance, nm(kts) |
15000(8) |
|
Armament |
1 x 1 - 76/50 Mk 26, 2 x 1 - 20/70 Mk 10 |
|
Electronic equipment |
SPS-5 radar |
|
Complement |
85 |
Project history: Former USN Abnaki class fleet tug.
Modernizations: None.
Naval service: No significant events.

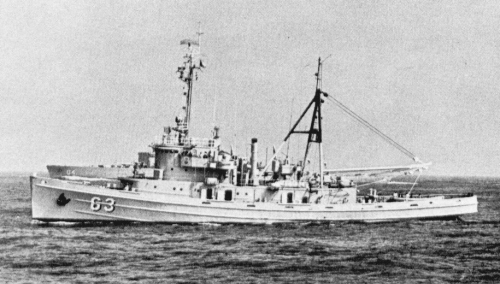

Sargento Aldea 1979
