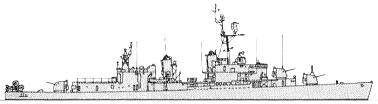

Ministro Zenteno 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Ministro Zenteno (ex-Charles S. Sperry) | 16 | Federal, Kearny, USA | 19.10.1943 | 13.3.1944 | 17.5.1944 // 8.1.1974 | stricken 1990 | |
| Ministro Portales (ex-Douglas H. Fox) | 17 | Todd-Pacific, Seattle, USA | 31.1.1944 | 30.9.1944 | 26.12.1944 // 8.1.1974 | stricken 1990 |
|
Displacement standard, t |
2200 |
|
Displacement full, t |
3300 |
|
Length, m |
112.5 wl 114.8 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.30 hull 5.80 sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
30 |
|
Fuel, t |
oil 650 |
|
Endurance, nm(kts) |
4600(15) |
|
Armament |
3 x 2 - 127/38 Mk 38, 2 x 1 - 20/70 Mk 10, 2 x 3 - 324 Mk 32 TT (Mk 44), 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 helicopter (Alouette III) |
|
Electronic equipment |
16: SPS-29, SPS-10, Mk 25 radars, SQS-40 sonar with towed array, WLR-1 ECM suite 17: SPS-40, SPS-10, Mk 25 radars, SQS-40 sonar with towed array, WLR-1 ECM suite |
|
Complement |
274 |
Project history: Former USN Allen M. Sumner class destroyers, received FRAM II modernization.
Modernizations: 1980, bots: - 2 x 1 - 20/70, towed sonar array; + 2 x 1 MM38 Exocet SSM (2 MM38)
1982, both: - 2 x 1 MM38 Exocet SSM; + 2 x 1 - 40/60 Mk 3
Naval service: No significant events.

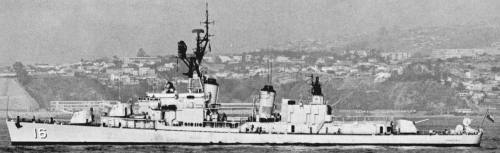

Ministro Zenteno 1979
