Ingeniero Hyatt 1896
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cirujano Videla | Yarrow, Poplar, UK | 1896 | 1896 | stricken 1922 | |||
| Ingeniero Mery | Yarrow, Poplar, UK | 1896 | 1896 | stricken 1922 | |||
| Ingeniero Hyatt | Yarrow, Poplar, UK | 1896 | 1896 | stricken 1922 | |||
| Teniente Rodriguez | Yarrow, Poplar, UK | 1896 | 1896 | stricken 1922 | |||
| Ingeniero Mutilla | Yarrow, Poplar, UK | 1898 | 1898 | stricken 1922 | |||
| Guardiamarina Contreras | Yarrow, Poplar, UK | 1898 | 1898 | stricken 1922 |
|
Displacement normal, t |
140 |
|
Displacement full, t |
|
|
Length, m |
46.5 |
|
Breadth, m |
4.65 |
|
Draught, m |
2.36 max |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 Yarrow boilers |
|
Power, h. p. |
2200 |
|
Max speed, kts |
26.5 - 27.5 |
|
Fuel, t |
coal 40 |
|
Endurance, nm(kts) |
|
|
Armament |
3 x 1 - 47/40 Hotchkiss, 1 - 356 TT (bow), 1 x 2 - 356 TT |
|
Complement |
16 |
Project history: Steel-hulled first class TB, with a turtleback forecastle and two funnels.
Modernizations: None.
Naval service: No significant events.

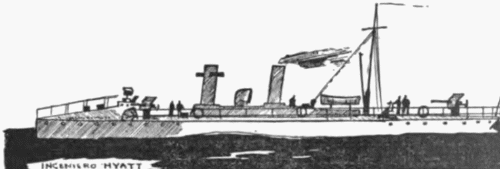

Ingeniero Hyatt 1900
