Capitán Merino Jarpa 1902
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Capitán Merino Jarpa | Laird, Birkenhead, UK | 1901 | 1902 | stricken 1924 | |||
| Capitán O`Brien | Laird, Birkenhead, UK | 1901 | 1902 | stricken 1924 | |||
| Capitán Thomson | Laird, Birkenhead, UK | 1901 | 1902 | stricken 1924 |
|
Displacement normal, t |
321 |
|
Displacement full, t |
|
|
Length, m |
65.5 pp |
|
Breadth, m |
6.48 |
|
Draught, m |
1.80 trials |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 Normand boilers |
|
Power, h. p. |
6250 |
|
Max speed, kts |
30 |
|
Fuel, t |
coal 90 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 76/40 Armstrong N, 5 x 1 - 57/40 Hotchkiss, 2 x 1 - 450 TT |
|
Complement |
65 |
Project history: Improved version of previous class.
Modernizations: None.
Naval service: No significant events.

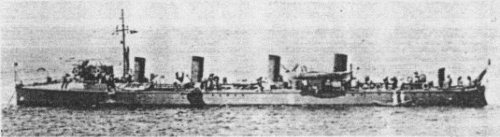

Capitán Merino Jarpa
