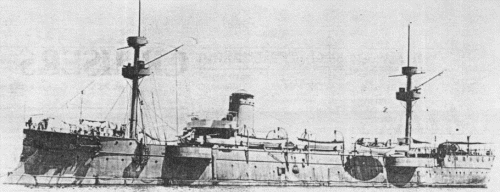

Presidente Errázuriz 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Presidente Errázuriz | F C de la Méditerranée, La Seyne, France | 1889 | 21.6.1890 | 1892 | gunnery TS 1919, discarded 1930 | ||
| Presidente Pinto | F C de la Méditerranée, La Seyne, France | 1889 | 4.9.1890 | 1.1892 | discarded 1910 |
|
Displacement normal, t |
2047 |
|
Displacement full, t |
|
|
Length, m |
81.8 pp |
|
Breadth, m |
10.9 |
|
Draught, m |
4.39 mean |
|
No of shafts |
2 |
|
Machinery |
2 HTE, 4 cylindrical boilers |
|
Power, h. p. |
5400 |
|
Max speed, kts |
18.3 |
|
Fuel, t |
coal 400 |
|
Endurance, nm(kts) |
|
|
Armour, mm |
Steel; deck: 35 - 25 with 60 - 35 slopes, shields: 90, CT: 50 |
|
Armament |
4 x 1 - 150/36 Canet M1884, 2 x 1 - 120/36 Canet M1884, 4 x 1 - 57/40 Hotchkiss, 3 - 356 TT (1 bow, 1 beam) |
|
Complement |
170 |
Project history: Wood- and copper-sheathed hull with raised forecastle and poop. 150mm guns were installed in sponsons and 120mm guns fore and aft.
Ship protection: Full length protective deck was 35mm at flat part and 60mm at slopes abreast machinery and 25mm at flat part and 35mm at slopes at ship ends.
Modernizations: 1908, Presidente Errázuriz: boilers were replaced by 4 Belleville; - 4 x 1 - 150/36, 2 x 1 - 120/36; + 4 x 1 - 152/45 Armstrong KK, 2 x 1 - 120/45 Canet M1890
Naval service: By 1919 Presidente Errázuriz served as gunnery TS.
Presidente Pinto
