Guardiamarina Riquelme 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Guardiamarina Riquelme (ex-Wolf, ex-S49) | 36 | CMN, Cherbourg, France | 23.1.1973 | 11.1.1974 | 4.3.1975 // 27.8.1997 | stricken 12.2012 | |
| Teniente Orella (ex-Elster, ex-S54) | 37 | Lürssen, Vegesack, West Germany | 29.6.1973 | 8.7.1974 | 27.11.1974 // 27.8.1997 | stricken 2014 | |
| Teniente Serrano (ex-Tiger, ex-S41) | 38 | CMN, Cherbourg, France | 11.10.1971 | 27.9.1972 | 30.10.1972 // 10.1998 | stricken 2014 | |
| Teniente Uribe (ex-Kranich, ex-S60) | 39 | Lürssen, Vegesack, West Germany | 9.5.1974 | 26.5.1975 | 6.8.1975 // 10.1998 | stricken 2014 |
|
Displacement standard, t |
234 |
|
Displacement full, t |
264 |
|
Length, m |
45.9 pp 47.0 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.66 full load |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB90 (MD872) diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
35.8 |
|
Fuel, t |
diesel oil 39 |
|
Endurance, nm(kts) |
1600(15) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564 |
|
Electronic equipment |
3RM20, Triton-G, Castor II radars |
|
Complement |
30 |
Project history: Type 148 FACs of Bundesmarine. German EW equipment was removed prior to transfer.
Modernizations: 2000s, all: diesels were replaced by 4 MTU 16V396 (13000hp, 34kts)
Naval service: No significant events.

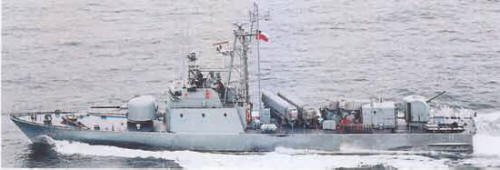

Teniente Uribe 2001
