Names |
LEP1601 Ona LEP1602 Yagan |
|
Builders |
ASENAV, Valdivia: LEP1601, 1602 |
|
Completed |
1980: LEP1601, 1602 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2001: LEP1601, 1602 |
|
Displacement standard, t |
|
|
Displacement full, t |
79 |
|
Length, m |
24.6 |
|
Breadth, m |
5.30 |
|
Draught, m |
1.70 hull 2.90 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 6V331 TC82 diesels |
|
Power, h. p. |
1320 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
415(15) |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
Raytheon R-84 radar |
|
Complement |
5 |
Project history: Patrol boats.
Modernizations: None.
Naval service: No significant events.

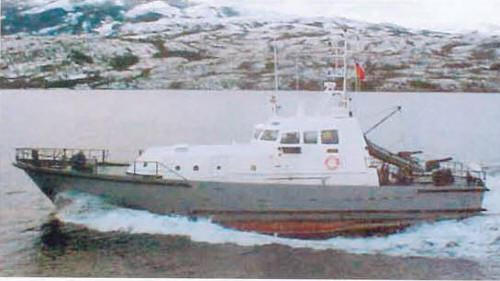

Yagan 2003
