Covadonga 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Iquique (ex-חנית [Hanit]) | 32 | CMN, Cherbourg, France | 1969 | 1970 // 1.1989 | stricken 2.2000 | ||
| Covadonga (ex-חץ [Hetz]) | 33 | CMN, Cherbourg, France | 14.12.1969 | 1970 // 1.1989 | stricken 2.2000 |
|
Displacement standard, t |
220 |
|
Displacement full, t |
250 |
|
Length, m |
45.0 |
|
Breadth, m |
7.00 |
|
Draught, m |
1.80 mean 2.50 propellers |
|
No of shafts |
4 |
|
Machinery |
4 Maybach-Mercedes MD871 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil 30 |
| Endurance, nm(kts) | 2500(15) |
|
Armament |
2 x 3 Gabriel I SSM (6 Gabriel I), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 12.7/90 |
|
Electronic equipment |
THD1040 Neptune, L/M-2221 Orion radars, MN-53, Rattler ECM suites, 4x ACDS, 1x 72LCRL decoy RL |
| Complement | 40 - 45 |
Project history: Israeli Sa'ar 3 FACs. Usually carried only 4 missiles instead of 6.
Modernizations: None.
Naval service: No significant events.

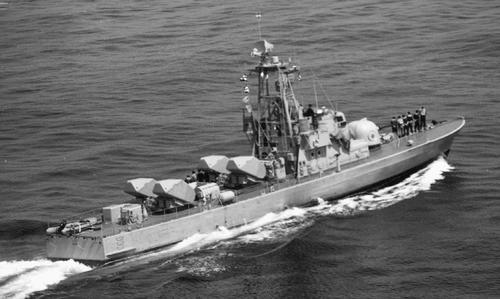

Iquique 1992
