Names |
LPC1814 Grumete Venanzio Díaz LPC1815 Grumete Luciano Bolados LPC1816 Grumete Santiago Salinas LPC1817 Grumete Blas Segundo Tellez LPC1818 Grumete Juan Bravo LPC1819 Grumete David Campos LPC1820 Grumete Samuel Machado LPC1821 Grumete Rudicindo Troncoso LPC1822 Grumete Domingo Jonhnson LPC1823 Grumete Manuel Hudson |
|
Builders |
Israeli Aircraft Industries, Be'er Sheva, Israel: LPC1814-1823 |
|
Completed |
1973-1977 // 1.1991: LPC1814-1819 1973-1977 // 3.1995: LPC1820-1823 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2006: LPC1819, 1822 2012: LPC1821 2013: LPC1815, 1817, 1818 in service (2019): LPC1814, 1816, 1820, 1823 |
|
Displacement standard, t |
29 |
|
Displacement full, t |
40 |
|
Length, m |
19.9 |
|
Breadth, m |
5.50 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12V71TI diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
450(13) |
|
Armament |
LPC1814-1816, 1819-1823: 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 LPC1817: 2 x 1 - 12.7/90 LPC1818: 1 x 1 - 12.7/90 |
|
Electronic equipment |
Decca 926 radar |
|
Complement |
10 |
Project history: Israeli Dabur class. Aluminium construction. Have semirigid inflatable boat aft.
Modernizations: None.
Naval service: No significant events.

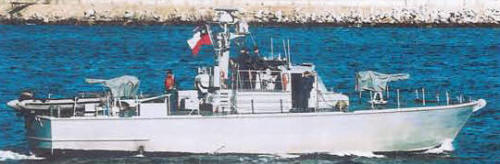

Grumete Manuel Hudson 2001
