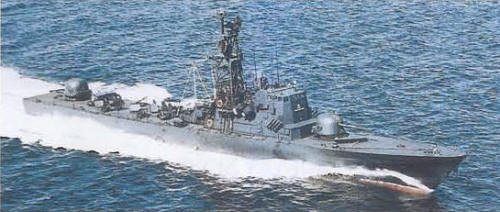

Casma 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Casma (ex-Romach) | 30 | Israeli SY, Haifa, Israel | 1.1974 | 3/1974 // 8.11.1979 | in service (2019) | ||
| Chipana (ex-Keshet) | 31 | Israeli SY, Haifa, Israel | 27.8.1973 | 10/1973 // 30.12.1980 | in service (2019) | ||
| Angamos (ex-Reshef) | 34 | Israeli SY, Haifa, Israel | 19.2.1973 | 4/1973 // 1.6.1997 | in service (2019) | ||
| Papudo (ex-Tarshish) | 35 | Israeli SY, Haifa, Israel | 1.1975 | 3/1975 // 1.6.1997 | stricken 1999 |
|
Displacement standard, t |
415 |
|
Displacement full, t |
450 |
|
Length, m |
58.1 |
|
Breadth, m |
7.60 |
|
Draught, m |
2.70 |
|
No of shafts |
4 |
|
Machinery |
4 MTU MD871 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3600(17) |
|
Armament |
30: 4 x 1 Gabriel II SSM (4 Gabriel II), 2 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 20/70 Mk 10 31: 4 x 1 Gabriel II SSM (4 Gabriel II), 2 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 20/70 Mk 24 33, 34: 4 x 1 Gabriel II SSM (4 Gabriel II), 2 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
|
Electronic equipment |
THD1040 Neptune, L/M-2221, Raytheon 20X radars, MN-53, Rattler ECM suites, 4x ACDS decoy RL |
|
Complement |
51 |
Project history: Israeli Sa'ar 4 FACs. Harpoon SSMs were removed prior the transfer.
Modernizations: 2000, Casma, 2003, Chipana: diesels were replaced by 4 MTU 16V396 diesels (13000hp, 31kts)
late 2000s, Angamos: diesels were replaced by 4 MTU 16V596 TB91 diesels (15000hp, 32kts)
2004-mid 2005s, all: + 1 x 2 Simbad SAM (~4 Mistral), SP-100 CCS
2010s, some: - SP-100 CCS; + SP 21K CCS
2010s, Angamos: - 6 x 1 Gabriel II SSM; + 2 x 2 MM40 Exocet SSM (4 MM40)
Naval service: Chipana was thrown ashore by tsunami at Talcahuano 27.2.2010 but later was salvaged and repaired.
Casma 2000
