Fundy 1938
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Comox | J64 | Burrard, Vancouver | 2.1938 | 9.8.1938 | 11.1938 | to China 1946 (宋明 [Sung Ming]) | |
| Fundy | J68 | Collingwood | 1.1938 | 18.6.1938 | 9.1938 | sold 1947 | |
| Gaspé | J94 | Morton, Quebec City | 1.1938 | 12.8.1938 | 10.1938 | to China 1947 (宋礼 [Sung Li]) | |
| Nootka, 1944- Nanoose | J35 | Canadian Yarrow, Esquimalt | 2.1938 | 26.9.1938 | 12.1938 | to China 1947 (宋陵 [Sung Ling]) |
|
Displacement standard, t |
521 - 560 |
|
Displacement full, t |
725 - 775 |
|
Length, m |
48.9 - 50.0 |
|
Breadth, m |
8.25 - 8.43 |
|
Draught, m |
3.23 - 3.40 deep load |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 cylindrical boiler |
|
Power, h. p. |
850 - 950 |
|
Max speed, kts |
12.5 - 13 |
|
Fuel, t |
coal 180 - 196 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 102/40 QF Mk IV, 4 x 1 - 7.7/87, 2 DCT, 2 DCR (4), mechanical minesweeping gear |
|
Complement |
33 Indian-built: 48 |
Project history: Minesweeping trawlers.
Modernizations: 1942 - 1944, all: - 4 x 1 - 7.7/87; + (1 - 3) x 1 - 20/70 Oerlikon Mk II/IV, DC stowage rose up to 25.
Naval service: No significant events.

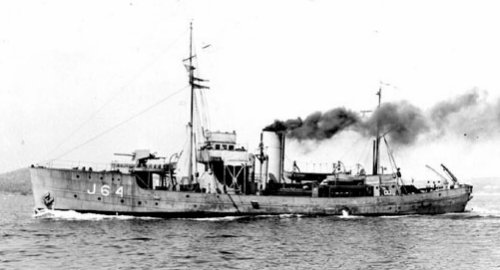

Comox
