Baffin 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| armed trawlers | |||||||
| Anticosti | T274 | Collingwood SY | 10.1941 | 1.4.1942 | 10.1942 | to UK 6.1945 | |
| Baffin | T275 | Collingwood SY | 10.1941 | 13.4.1942 | 8.1942 | to UK 8.1945 | |
| Bowell, 11.1942- Miscou (ex-Campenia) | T277 | Collingwood SY | 12.1941 | 1.6.1942 | 10.1942 | sold 3.1946 | |
| Cailiff | T276 | Collingwood SY | 12.1941 | 30.4.1942 | 9.1942 | to UK 6.1945 | |
| Ironbound | T284 | Kingston SY | 10.1941 | 14.1.1942 | 10.1942 | to UK 6.1945 | |
| Liscomb | T285 | Kingston SY | 7.1941 | 23.3.1942 | 9.1942 | to UK 6.1945 | |
| Magdalen | T279 | Midland SB | 10.1941 | 3.7.1942 | 8.1942 | to UK 6.1945 | |
| Manitoulin | T280 | Midland SB | 11.1941 | 23.4.1942 | 9.1942 | to UK 6.1945 | |
| controlled minelayers | |||||||
| Stonechat | Cook, Welton & Gemmell, Hull, UK | 2.1944 | 28.8.1944 | 11.1944 | BU 1967 | ||
| Whitethroat | Cook, Welton & Gemmell, Hull, UK | 5.1944 | 6.9.1944 | 12.1944 | survey vessel 1960 | ||
|
Displacement standard, t |
545 |
|
Displacement full, t |
770 |
|
Length, m |
50.0 |
|
Breadth, m |
8.43 |
|
Draught, m |
3.38 deep load |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 cylindrical boiler |
|
Power, h. p. |
850 |
|
Max speed, kts |
12.25 |
|
Fuel, t |
coal 183 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 3 x 1 - 20/70 Oerlikon Mk II/IV, 4 DCT, 2 DCR (30), mechanical minesweeping gear minelayers: 1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 3 x 1 - 20/70 Oerlikon Mk II/IV, mines |
|
Complement |
35 - 40 |
Project history: Development of Basset class, intended for minesweeping.
Modernizations: None.
Naval service: No significant events.

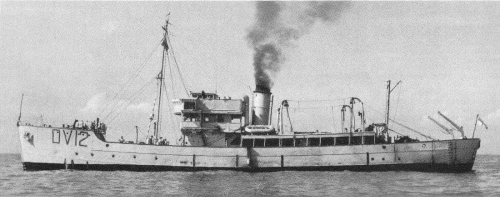

Lundy after war in an auxiliary role
Blackbird 1943
