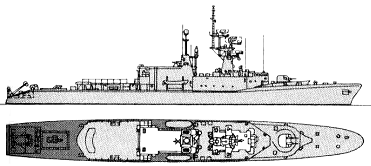

Annapolis 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Annapolis | DDE265 | Halifax SY | 2.9.1961 | 27.4.1963 | 19.12.1964 | paid off 11.1996, scuttled 2015 | |
| Nipigon | DDE266 | Marine Industries, Sorel | 5.8.1960 | 10.12.1961 | 30.5.1964 | paid off 7.1998, scuttled 2003 |
|
Displacement standard, t |
2400 |
|
Displacement full, t |
3000 |
|
Length, m |
111.6 wl 113.1 oa |
|
Breadth, m |
12.8 |
|
Draught, m |
4.20 |
|
No of shafts |
2 |
|
Machinery |
2 sets English Electric geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
30000 |
|
Max speed, kts |
28 |
|
Fuel, t |
oil |
|
Endurance, nm(kts) |
4570(12) |
|
Armament |
1 x 2 - 76/50 Mk 33, 2 - 324 TL, 1 x 3 - 305 Limbo Mk 10 ASW RL, 1 helicopter (CH-124 Sea King) |
|
Electronic equipment |
SPS-10, SPS-12, Sperry Mk II, SPG-48, Sperry Mk II radars, SQS-501, SQS-502, SQS-503, SQS-504, SQS-10/11 sonars |
|
Complement |
228 |
Project history: The final development of the original St. Laurent ordered in 1959 incorporated all the improvements approved for the earlier ships, particularly the Sea King helicopter deck and hangar. Because of the extra topweight the lighter USN-pattern 76mm/50 Mk 33 was reintroduced in place of the British-pattern Mk 6.
Modernizations: 1977-1979, both: - 2 - 324 torpedo launchers; + 2 x 3 - 324 TT
1984, Nipigon; 1986, Annapolis: - 1 x 3 - 305 Limbo ASWRL, SPS-10, SPS-12, Sperry Mk II radars, SQS-501 sonar; + SPS-502, SPS-503, Sperry Mk 127E radars, SQR-501 CANTASS sonar, CANEWS ECM suite, 4x SRBOC decoy RL
Naval service: No significant events.

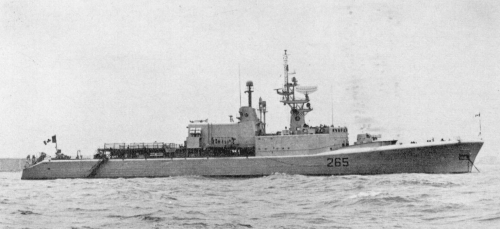

Annapolis 1980
