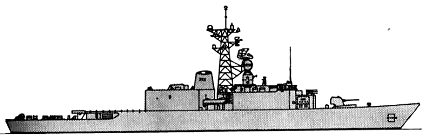

Iroquois 1980

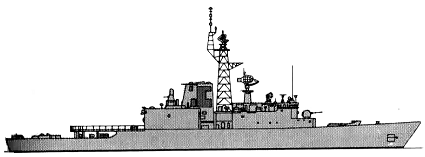

Athabaskan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Iroquois | DDH280 | Marine Industries, Sorel | 15.1.1969 | 28.11.1970 | 29.7.1972 | decommissioned 5.2015 | |
| Huron | DDH281 | Marine Industries, Sorel | 15.1.1969 | 3.4.1971 | 16.12.1972 | decommissioned 3.2005 | |
| Athabaskan | DDH282 | Davie SB, Lauzon | 1.6.1969 | 27.11.1970 | 30.11.1972 | decommissioned 3.2017 | |
| Algonquin | DDH283 | Davie SB, Lauzon | 1.9.1969 | 23.4.1971 | 30.9.1973 | decommissioned 6.2015 |
| Data variant | as completed |
|
Displacement standard, t |
3551 |
|
Displacement full, t |
4200 |
|
Length, m |
121.3 pp 128.9 oa |
|
Breadth, m |
15.2 |
|
Draught, m |
4.42 |
|
No of shafts |
2 |
|
Machinery |
COGOG: 2 Pratt & Whitney FT4A-2 gas turbines / 2 Solar Mk FT 12H gas turbines |
|
Power, h. p. |
50000 / 7400 |
|
Max speed, kts |
29 |
|
Fuel, t |
gas turbine oil |
| Endurance, nm(kts) | 4500(20) |
|
Armament |
2 x 4 Canadian Sea Sparrow SAM (32 AIM-7E), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 3 - 324 Mk 32 TT, 1 x 3 Limbo Mk 10 ASWRL, 2 helicopters (CHSS-2 Sea King) |
|
Electronic equipment |
Koden MD373, SP-501, SPQ-2D, 2x WM-22 radars, SQS-505, SQS-505(VDS), SQS-501 sonars, WLR-1, ULQ-6 ECM suites, 1x flare RL, 2x Corvus decoy RL |
|
Complement |
285 |
Project history: Ordered in 1968 as a revised design on the same hull as the cancelled general-purpose frigates of 1963. The design allowed for two big helicopters (CHSS-2) to enhance their ASW capabilities, and they were among the best equipped escorts in the world.
Modernizations: 10.1991, Algonquin; 5.1992, Iroquois; 8.1994, Athabaskan; 11.1994, Huron: as TRUMP conversion with the data as given in the table.
| Data variant | TRUMP modernization |
|
Displacement standard, t |
4450 |
|
Displacement full, t |
5100 |
|
Length, m |
121.3 pp 128.9 oa |
|
Breadth, m |
15.2 |
|
Draught, m |
4.69 hull 7.86 max |
|
No of shafts |
2 |
|
Machinery |
COGOG: 2 Pratt & Whitney FT4A-2 gas turbines / 2 Allison 570KF gas turbines |
|
Power, h. p. |
47494 / 12890 |
|
Max speed, kts |
29 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4500(15) |
|
Armament |
DDH280, 282, 283: 1 x 29 Standard SM-2MR Block IIIA SAM (VLS, 29 RIM-66M-2), 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 6 - 20/76 Phalanx Mk 15 Block I, 2 x 3 - 324 Mk 32 Mod. 5 TT, 2 helicopters (CH-124A Sea King) DDH281: 1 x 29 Standard SM-2MR Block IIIA SAM (VLS, 29 RIM-66M-2), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 3 - 324 Mk 32 Mod. 5 TT, 2 helicopters (CH-124A Sea King) |
|
Electronic equipment |
DDH280: Sperry Mk 340, Koden MD373, SPQ-501 (DA-08/2LS), SPQ-502 (LW-08), 2x SPG-501 (STIR1.8/OT-134), Mk 90, LIROD-8 radars, SQS-505(v)4, SQS-505(v)5 VDS sonars, SLQ-501 (CANEWS), ULQ-6B ECM suites, 2x Corvus decoy RL, SLQ-25 Nixie torpedo decoy, SHINPADS CCS DDH281-282: Sperry Mk 340, Raytheon 1900 Pathfinder, SPQ-501 (DA-08/2LS), SPQ-502 (LW-08), 2x SPG-501 (STIR1.8/OT-134), Mk 90, LIROD-8 radars, SQS-505(v)4, SQS-505(v)5 VDS sonars, SLQ-501 (CANEWS), ULQ-6B ECM suites, 2x Corvus decoy RL, SLQ-25 Nixie torpedo decoy, SHINPADS CCS |
|
Complement |
322 |
1998-2000, all: - SQS-505(v)4, SQS-505(v)5 VDS sonars; + SQS-510(v)4, SQS-510 VDS, Spectra 3000 sonars
1999, all: - ULQ-6B ECM suite, 2x Corvus decoy RL; + 4x Shield, 2x Nulka decoy RL
2002, Athabaskan; 2003, Algonquin; 2004, Iroquois: - SHINPADS CCS; + Westcam 14, Sirius e/o systems, JMCIS CCS
Naval service: No significant events.

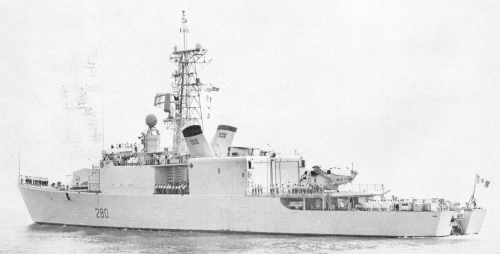

Iroquois 1978

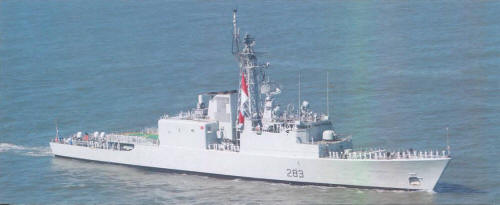

Algonquin 2007
