TANU patrol ship (1968)

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Tanu			Yarrow, Esquimalt		1968	7.9.1968	Coast Guard 4.1995, in service (2019)

Displacement standard, t
880

Displacement full, t
925

Length, m
50.1 pp 54.7 oa

Breadth, m
9.75

Draught, m
4.75

No of shafts

1

Machinery

2 Fairbanks-Morse 38D8¹/₈x8 diesels

Power, h. p.
2680

Max speed, kts

15

Fuel, t

diesel oil 200

Endurance, nm(kts) 5000(12)

Armament

2 x 1 - 12.7/90

Electronic equipment 2x radars

Complement
16 + 16 passengers

Project history: Patrol ship of Department of Fisheries and Oceans.

Modernizations: 2000s: - 2 x 1 - 12.7/90, radar; + Raytheon M34, JRC JMA825-9 radars

Naval service: No significant events.

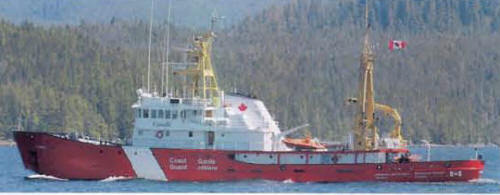

Tanu 2004

CANADIAN NAVY - CANADA

NON-NAVAL FORCES

TANU patrol ship (1968)

Displacement standard, t	880
Displacement full, t	925
Length, m	50.1 pp 54.7 oa
Breadth, m	9.75
Draught, m	4.75
No of shafts	1
Machinery	2 Fairbanks-Morse 38D8¹/₈x8 diesels
Power, h. p.	2680
Max speed, kts	15
Fuel, t	diesel oil 200
Endurance, nm(kts)	5000(12)
Armament	2 x 1 - 12.7/90
Electronic equipment	2x radars
Complement	16 + 16 passengers
