| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sir Wilfred Grenfell | Marystown SY | 12.1987 | Coast Guard 4.1995, in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
3753 |
|
Length, m |
59.6 pp 68.5 oa |
|
Breadth, m |
15.0 |
|
Draught, m |
5.42 |
|
No of shafts |
2 |
|
Machinery |
2 Deutz 268-2SBV16M diesels + 2 Deutz 268-SBV9M diesels |
|
Power, h. p. |
13040 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil 750 |
| Endurance, nm(kts) | 11000(11.5) |
|
Armament |
2 x 1 - 12.7/90 (fitted for), aft deck can be used for helicopter |
| Electronic equipment | Decca Bridgemaster II C252, Decca Bridgemaster C253 radars |
|
Complement |
20 + 16 passengers |
Project history: Patrol ship of Department of Fisheries and Oceans. Two Hurricane 740 fast RIBs, one Zodiac RIB. 6t crane, 6 water cannons, hospital for 10 persons. Bollard pull is 146t.
Modernizations: None.
Naval service: No significant events.

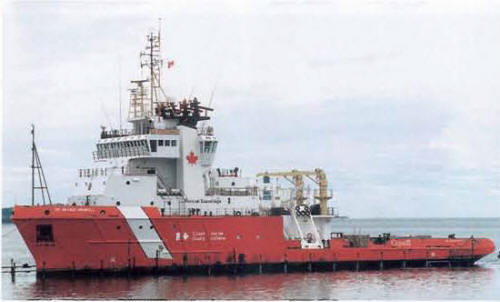

Sir Wilfred Grenfell 1997
