| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| James Sinclair | John Manly SY, Vancouver | 4.1981 | Coast Guard 4.1995, disposed 1998 |
|
Displacement standard, t |
|
|
Displacement full, t |
430 |
|
Length, m |
36.6 pp 37.8 oa |
|
Breadth, m |
8.40 |
|
Draught, m |
2.43 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V538 TB91 diesels |
|
Power, h. p. |
4600 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 12.7/90 |
| Electronic equipment | 2x Sperry radars |
|
Complement |
Project history: Patrol craft of Department of Fisheries and Oceans.
Modernizations: None.
Naval service: No significant events.

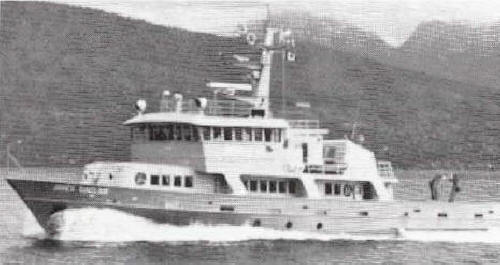

James Sinclair 1981
