| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Arrow Post | Hike Metal Products, Wheatley | 1991 | Coast Guard 4.1995, stricken 7.2016 |
|
Displacement standard, t |
228 |
|
Displacement full, t |
~300 |
|
Length, m |
29.0 |
|
Breadth, m |
8.80 |
|
Draught, m |
3.35 |
|
No of shafts |
1 |
|
Machinery |
1 Caterpillar 3512 TA diesel |
|
Power, h. p. |
1300 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil 45 |
| Endurance, nm(kts) | 2800(11) |
|
Armament |
none |
| Electronic equipment | Raytheon R81-6, Raytheon R82-9 radars |
|
Complement |
6+6 passengers |
Project history: Patrol craft of Department of Fisheries and Oceans. Carry two 4m Zodiac RIBs.
Modernizations: None.
Naval service: No significant events.

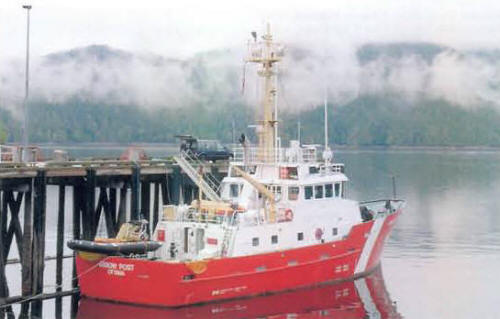

Arrow Post 2004
