Orca 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Orca | PCT55 | Victoria SY, Esquimalt | 9.11.2006 | in service (2019) | |||
| Raven | PCT56 | Victoria SY, Esquimalt | 15.3.2007 | in service (2019) | |||
| Caribou | PCT57 | Victoria SY, Esquimalt | 31.7.2007 | in service (2019) | |||
| Renard | PCT58 | Victoria SY, Esquimalt | 13.9.2007 | in service (2019) | |||
| Wolf | PCT59 | Victoria SY, Esquimalt | 29.11.2007 | in service (2019) | |||
| Grizzly | PCT60 | Victoria SY, Esquimalt | 19.3.2008 | in service (2019) | |||
| Cougar | PCT61 | Victoria SY, Esquimalt | 2.10.2008 | in service (2019) | |||
| Moose | PCT62 | Victoria SY, Esquimalt | 27.11.2008 | in service (2019) |
|
Displacement standard, t |
165 |
|
Displacement full, t |
210 |
|
Length, m |
30.6 pp 33.0 oa |
|
Breadth, m |
8.34 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516B diesels |
|
Power, h. p. |
5070 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2700(10) |
|
Armament |
1 x 1 - 12.7/90 (fitted for) |
| Electronic equipment | 2x Raytheon NSC 1810/6XU radars |
|
Complement |
4 + 16 students |
Project history: Intended to replace the YAG300-class training units. A contract for six shipswas awarded in 2005 with an option for two additional ships. Can provide secondary inshore patrol capability.
Modernizations: None.
Naval service: No significant events.

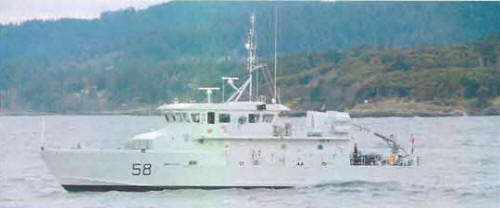

Renard 2008
