| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 1141 | China | 7.11.2007 | in service (2019) | ||||
| 1142 | China | 7.11.2007 | in service (2019) | ||||
| 1143 | China | 7.11.2007 | in service (2019) | ||||
| 1144 | China | 7.11.2007 | in service (2019) |
|
Displacement standard, t |
200 |
|
Displacement full, t |
250 |
|
Length, m |
44.0 pp 46.8 oa |
|
Breadth, m |
7.20 |
|
Draught, m |
2.00 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V2000 M90 diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(15) |
|
Armament |
1 x 2 - 37/66 type 76A/88, 1 x 2 - 23/82 ZU-23-2, 1 x 2 - 14.5/93 |
|
Sensors |
JMA 5312, JMA 5106 radars |
|
Complement |
30 |
Project history: New design, similar craft were delivered to Ghana and Congo.
Modernizations: None.
Naval service: No significant events.

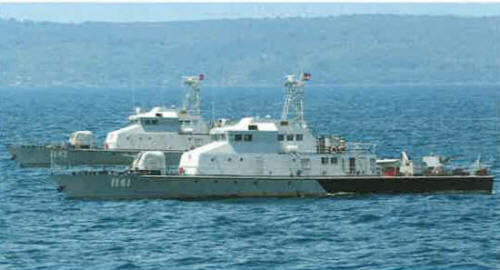

1141 and 1142 2012
© Ivan Gogin, 2019
