No401 1980
No68 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| project 1258E | |||||||
| 401, 1983- 67 | Sredne-Nevskiy, Pontonnyy, USSR | 1976 | stricken 2009 | ||||
| 68 | Sredne-Nevskiy, Pontonnyy, USSR | 1988 | stricken 2009 | ||||
| project 1258 | |||||||
| 402, 1983- 65 | Sredne-Nevskiy, Pontonnyy, USSR | 1976 | stricken 2012-15 | ||||
| 403, 1983- 66 | Sredne-Nevskiy, Pontonnyy, USSR | 1976 | stricken 2012-15 | ||||
|
Displacement standard, t |
88 |
|
Displacement full, t |
pr. 1258: 91 pr. 1258E: 97 |
|
Length, m |
26.1 |
|
Breadth, m |
5.40 |
|
Draught, m |
1.38 |
|
No of shafts |
2 |
|
Machinery |
2 3D12 diesels |
|
Power, h. p. |
600 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
pr. 1258: 300(10) pr. 1258E: 350(10) |
|
Armament |
pr. 1258: 1 x 2 - 25/112 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or IU-2 USV or MT-3U or VKT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear or 1 pr. 103 towed mine clearing line chargers carrier pr. 1258E: 1 x 2 - 25/112 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or MT-3U or OPT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear |
|
Electronic equipment |
Kivach radar, MG-7 Braslet sonar |
|
Complement |
10 |
Project history: Soviet project 1258E and project 1258 inshore minesweepers, presumably transferred new.
Modernizations: None.
Naval service: No significant events.

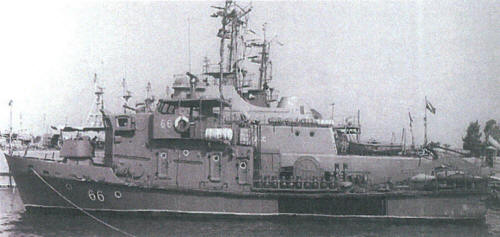

No66 1996
